AT32 Work Bench User Manual
2024.03.05 12 Ver 1.04

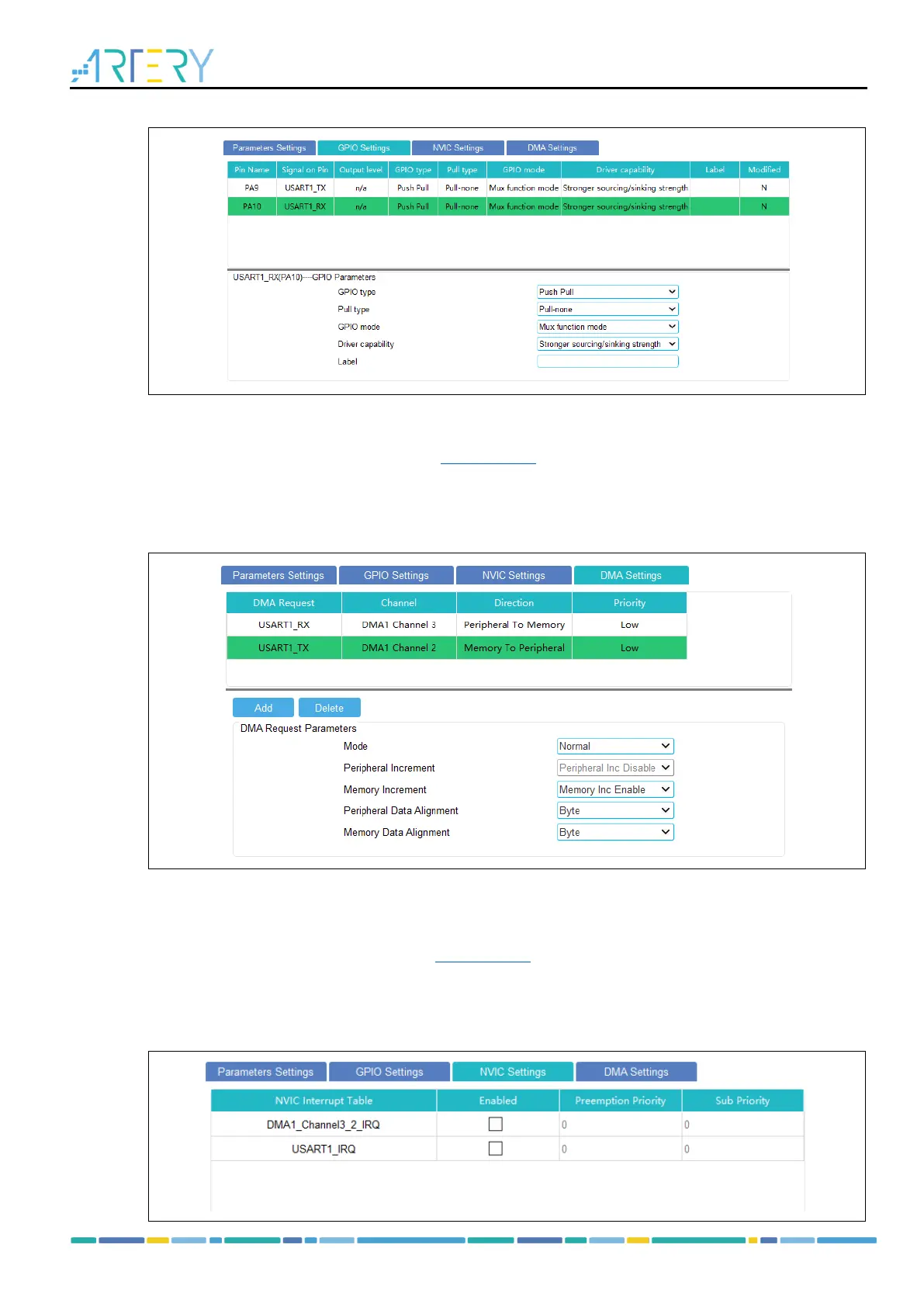

Figure 10. GPIO settings
This window displays configurable GPIOs, for example, GPIOs for “USART1_TX” and
“USART1_RX” in Figure 10.
For details about GPIO settings, refer to Section 4.2.4.
 DMA settings
Figure 11. DMA settings
This window allows users to add configurable DMA requests for the current peripheral, for example,
the corresponding DMA channels and DMA requests for “USART1_TX” and “USART1_RX” in
Figure 11.
For details about DMA settings, refer to Section 4.2.5.
 NVIC settings
Figure 12. NVIC settings
