Suitable Screwdrivers for all screw types provided in the box (not included in the kit)
Installation Steps
To install a Mobility Master hardware appliance into a two-post 19-inch Telco rack:

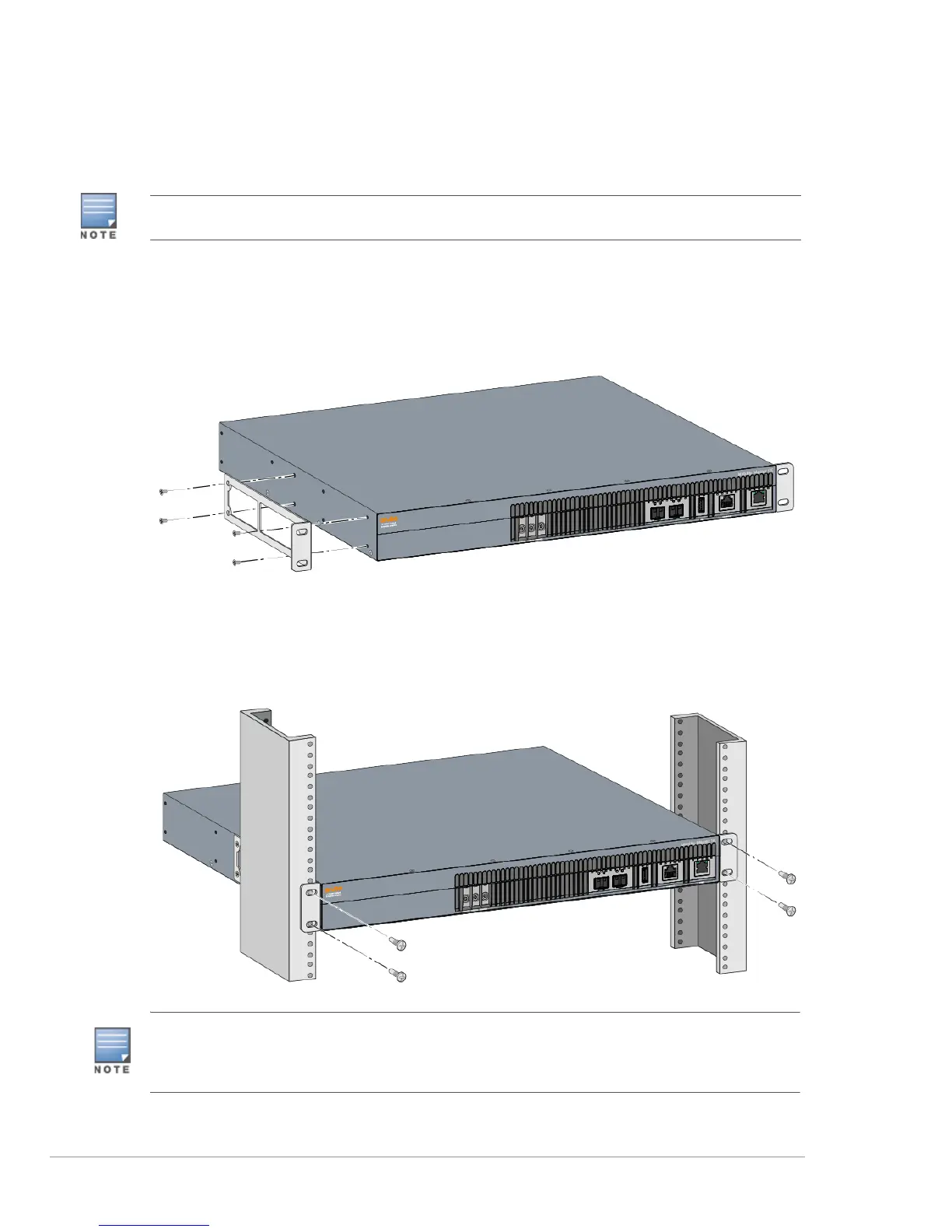

1. Place the mounting bracket over the mounting holes on the appliance (see Figure 5).
Figure 5 Rack Mount Brackets- Standard
2. Secure the bracket to the appliance using the eight screws for the mount bracket (four per
bracket) and a suitable screwdriver.
3. Mount the appliance within your organization’s rack system using the four screws for system rack
mount (two per bracket) and a suitable screwdriver (see Figure 6).
Figure 6 Rack Mount Installation- Standard
Some racks require screws that differ from those included with the Mobility Master hardware appliance.
Ensure that you have the correct screws before installing the Mobility Master hardware appliance.
Leave a minimum of 10 cm (4 inches) of space on the left and right side of the appliance for proper air flow
and ventilation.
Leave additional space in the front and the back of the appliance to access network cables, LED status
indicators, and power cord.
