3

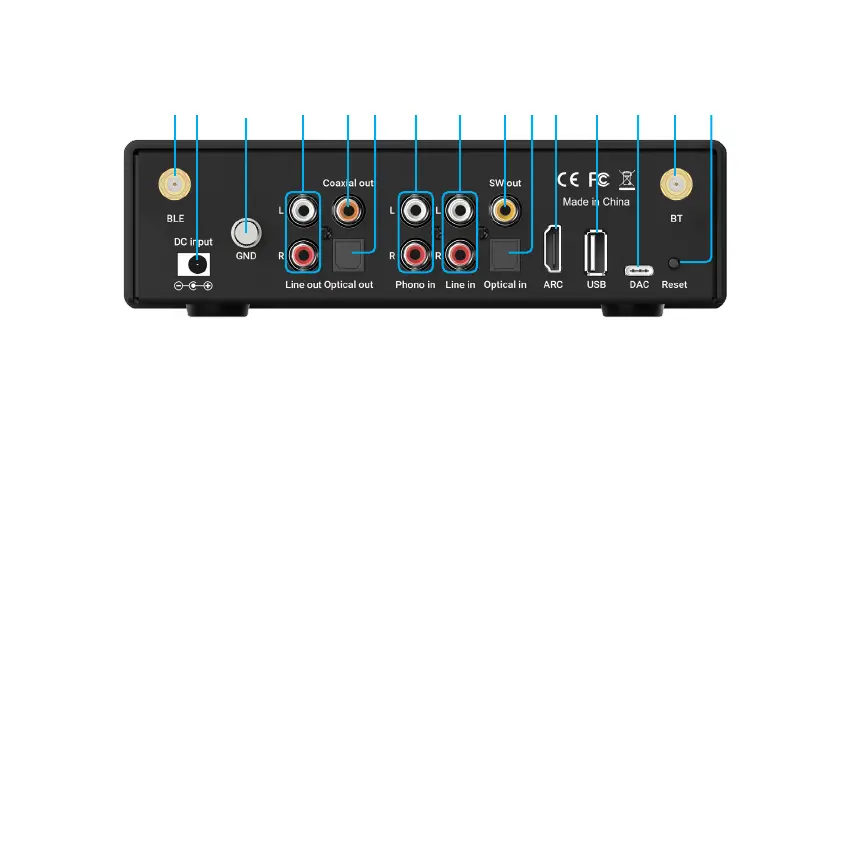

BLE Antenna: For Bluetooth BLE connection.
DC input: Please use the power adaptor comes with the package, using other power adaptor might
damage the device.
Ground connector: For connection to turntable GND connector (Optional).
Line out connector: For connection to amplier, active speaker or device with line input.
Coaxial out connector: For connection to soundbar, amplier, or device with coaxial input.
Optical out connector: For connection to soundbar, amplier or device with optical input.
Phono input connector: For connection to turntable as phono amplier.
Line input connector: For connection to device with line output.
Subwoofer output connector: For connection to active subwoofer.
Optical input connector: For connection to device with optical output.
TV ARC connector: For connection to TV HDMI ARC port.
USB Type-A port: For connection to USB disk drive.
USB Type-C port: For connection to PC.
BT Antenna: For Bluetooth connection.
Reset button: When in Bluetooth Receiver mode, press twice to disconnect all Bluetooth
connections.
When in Source input mode, press once to enable Bluetooth Transmitter connection, press twice to
disconnect all Bluetooth connections.
When a Bluetooth device or mobile is connected, press once to start second device connection.
Press and hold the button to do factory reset.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
5 6 7 8 11109 12 13 14 15 16 17 18 19
