Mounting into custom
cabinetry
1. Keep the door taped closed until the cabinet is
in place. Slide the drying cabinet in so that it is
flush and centered with the cabinetry facing.
2. Plug in the power cord to the electrical outlet,
making sure that the cord is not crimped and
that the plug can be easily unplugged without
moving the unit.
3. Remove the tape and open the door. Pull out
the upper hanger section. Measure and note
the distance between the drying cabinet’s rear
wall and the wall behind the drying cabinet. See
dimension “A” in the figure.
4. Mark the location of the holes on the wall with
a pencil.
5. Push back the hanger section, close the door
and tape it closed. Pull out the entire drying
cabinet.
6. Use a wood shim with thickness “A” according
to point 3 as a gauge block. The shim must:
a) be divided into two parts for allowing free air
flow behind the drying cabinet. Length ~6 in.
(15 cm) each.
b) have a thickness of minimum ½” (13 mm).
7. Screw the shims with two screws each to the
wall behind the drying cabinet so that it covers
the marked holes according to point 4. Use
screws with appropriate length.

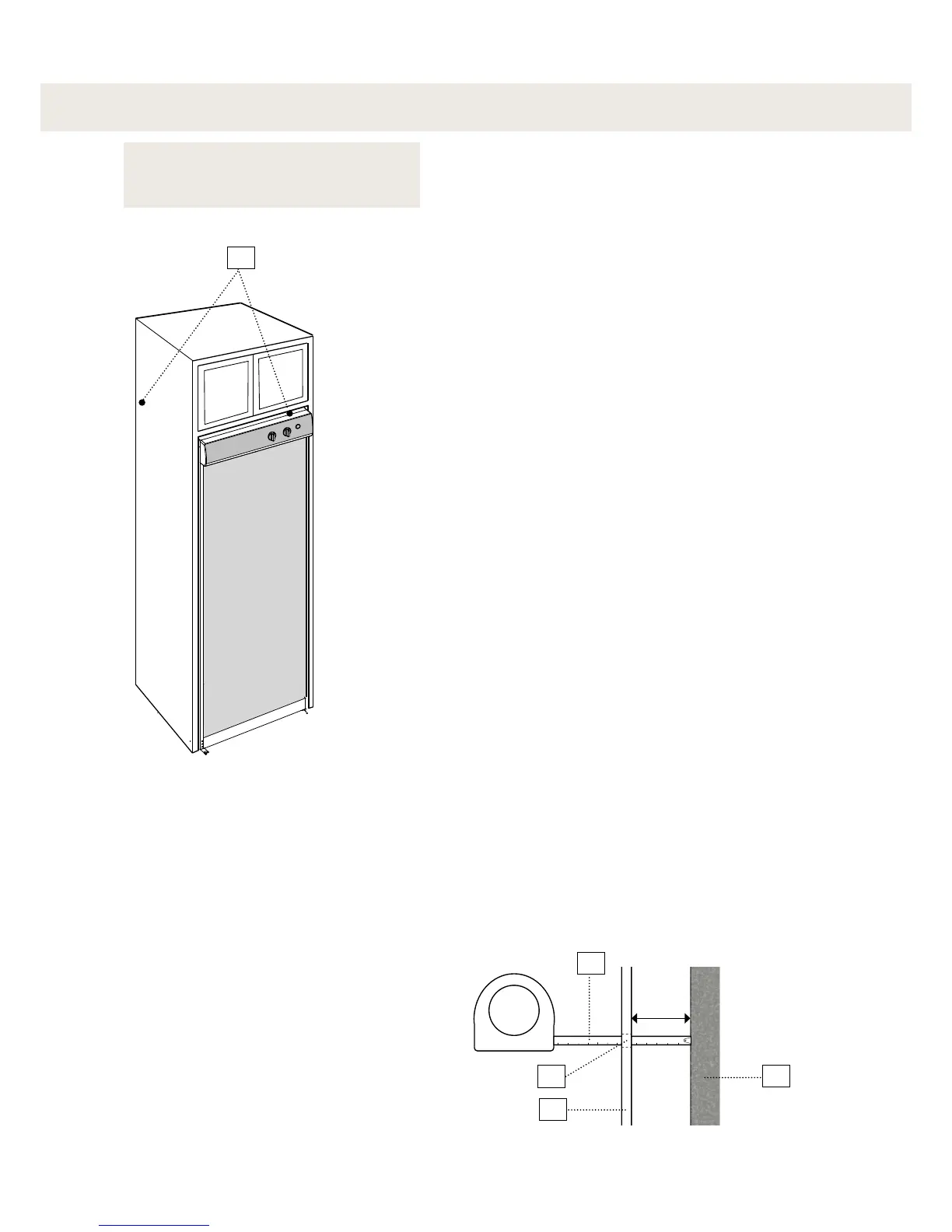

Slide the drying cabinet in so that
it is flush and centered with the
cabinetry facing.
1. Minimum ventilation openings in the
top and between the cabinet and the
rear wall must be ½” (13 mm).
2. Tape measure
3. Mounting hole
4. Rear drying cabinet wall
5. Wall behind drying cabinet
