Reconnection in the door

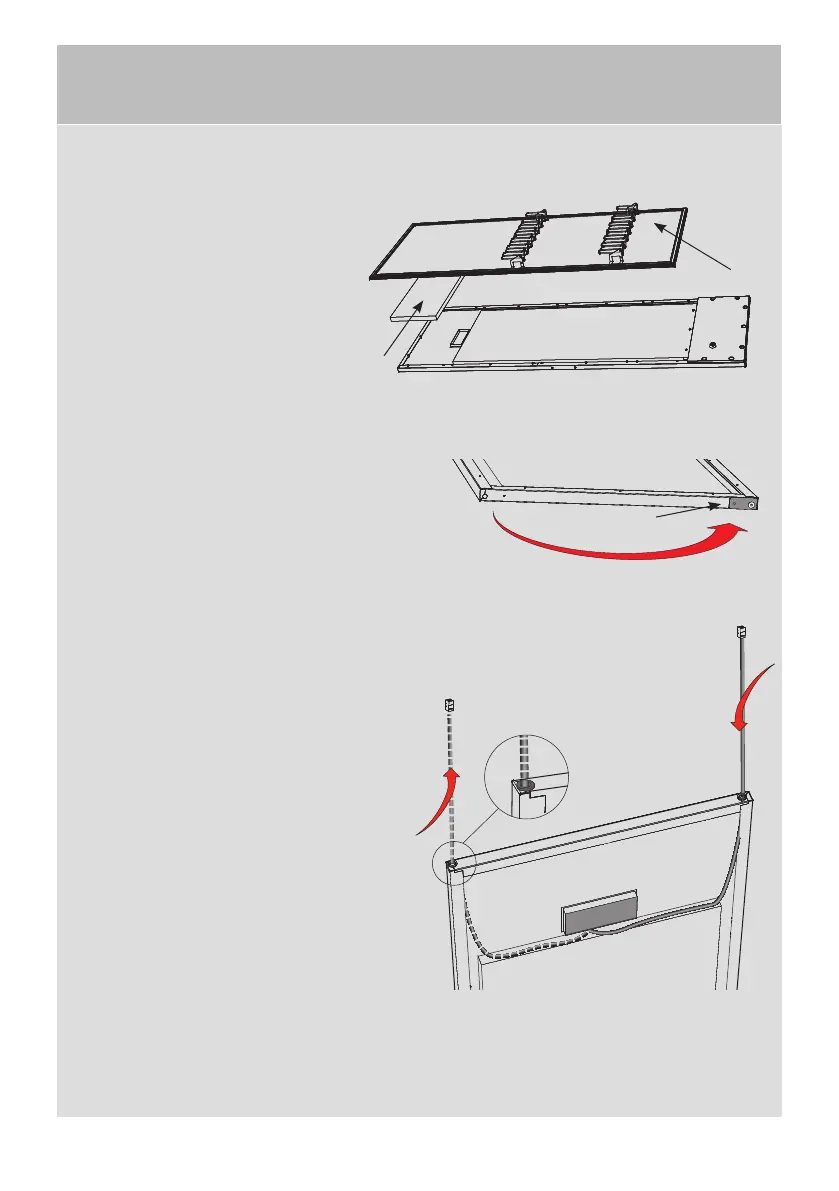

5 Lay the door down with
the inside facing up on a
non-damaging surface.
6 Detach the inner plate
(5) with magnetic strips,
glove hangers and, if
applicable, door hangers.
Screws are beneath the
magnetic strips.
Move the insulation into
position(6).
7 Detach and transfer the reinforce-
ment plate with lower hinge
bushing (7) in the door to the
opposite side.
8 Detach existing control cable from
control panel and pull cable out
with hinge bushing (8). Discard
the cable as there is a new com-
plete cable in the rehanging kit.
Fit the new cable on the opposite
side - press the bushing firmly into
the hole and connect the cable to
the control panel socket.
9 Move back the insulation and
inner plate with magnetic strips
and, if applicable, hangers.
Existing control
cable
New control
cable
