18
1 Carefully pull the upper part of the hose
out around 2 - 3 cm.
2 Trim the hose in the middle of the opening.
3
Install the new drain hose with the nipple
supplied in the assembly kit as illustrated.
Push the hose on without hose clips.
4
Position the drain hose in one of the
recesses in the sheet metal so that
there is no risk of the hose being
crushed.

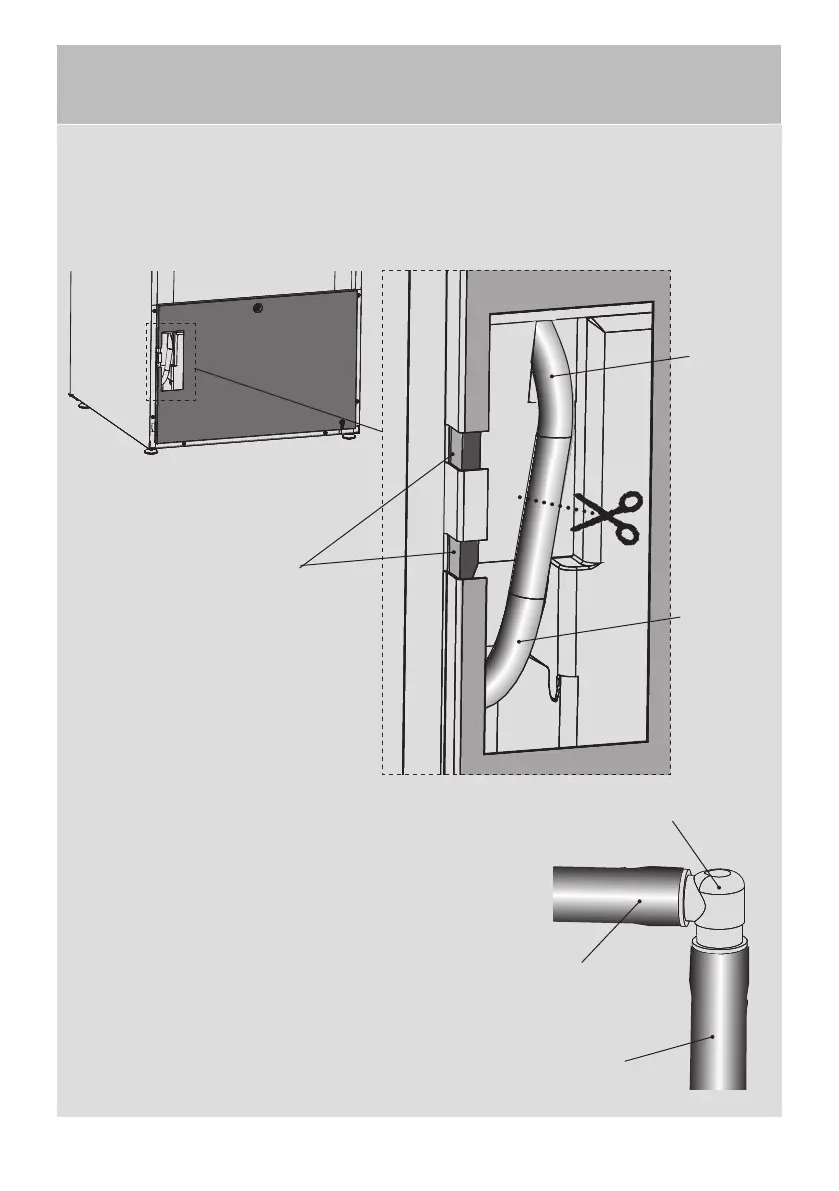

CONNECTION TO FLOOR DRAIN
The drying cabinet is supplied from the factory with a hose to the detachable water tank.
To change to removal of condensation water to the floor drain, proceed as follows:
Cabinet viewed from rear
Position the drain
hose in one of the
recesses in the
sheet metal
New hose to
drain
Nipple
Trimmed
hose from
condensation
water pump
Hose to
the de-
tachable
water tank
Hose from
condensa-
tion water
pump
