13 Appendix B – Antenna Types

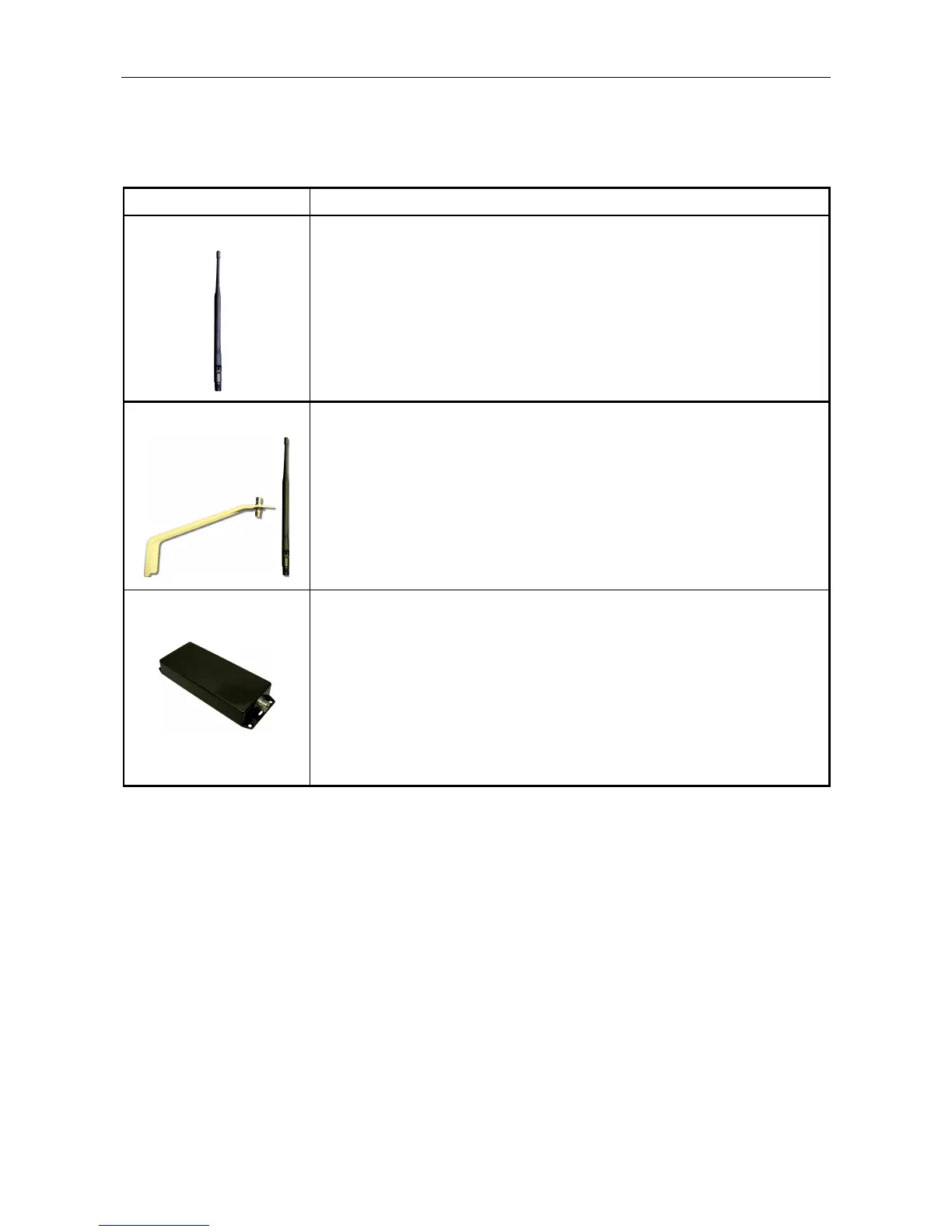

ASL Antenna Type Description
ANT03B
• Whip radio microphone antenna (without bracket)
• For direct connection to the upper face of the RRM02
• Frequency: 840 – 875 MHz
• Connector: TNC, plug
• Antenna size: 242 mm length
• For further details refer to the Product Overview, [Table 10-1].
ANT03
• Whip radio microphone antenna (with bracket)
• For remote antenna connection
• Frequency: 840 – 875 MHz
• Connector: TNC, jack
• Antenna size: 242 mm length
• Bracket size: max-48 mm min-35 mm x 244 mm
• For further details refer to the Product Overview, [Table 10-1].
ANT04
• Low profile omnidirectional radio microphone antenna
• For remote antenna connection
• Flame retardant LSZH ABS enclosure
• Frequency: 840 − 880 MHz
• Connector: N type, jack
• Antenna size: 27.98 mm x 70.61 mm x 193.26 mm
• For further details refer to the Product Manual, [Table 10-2].
