ASM Zip-Spray ESP - Page 19

Shutdown and Cleaning
311139B 19

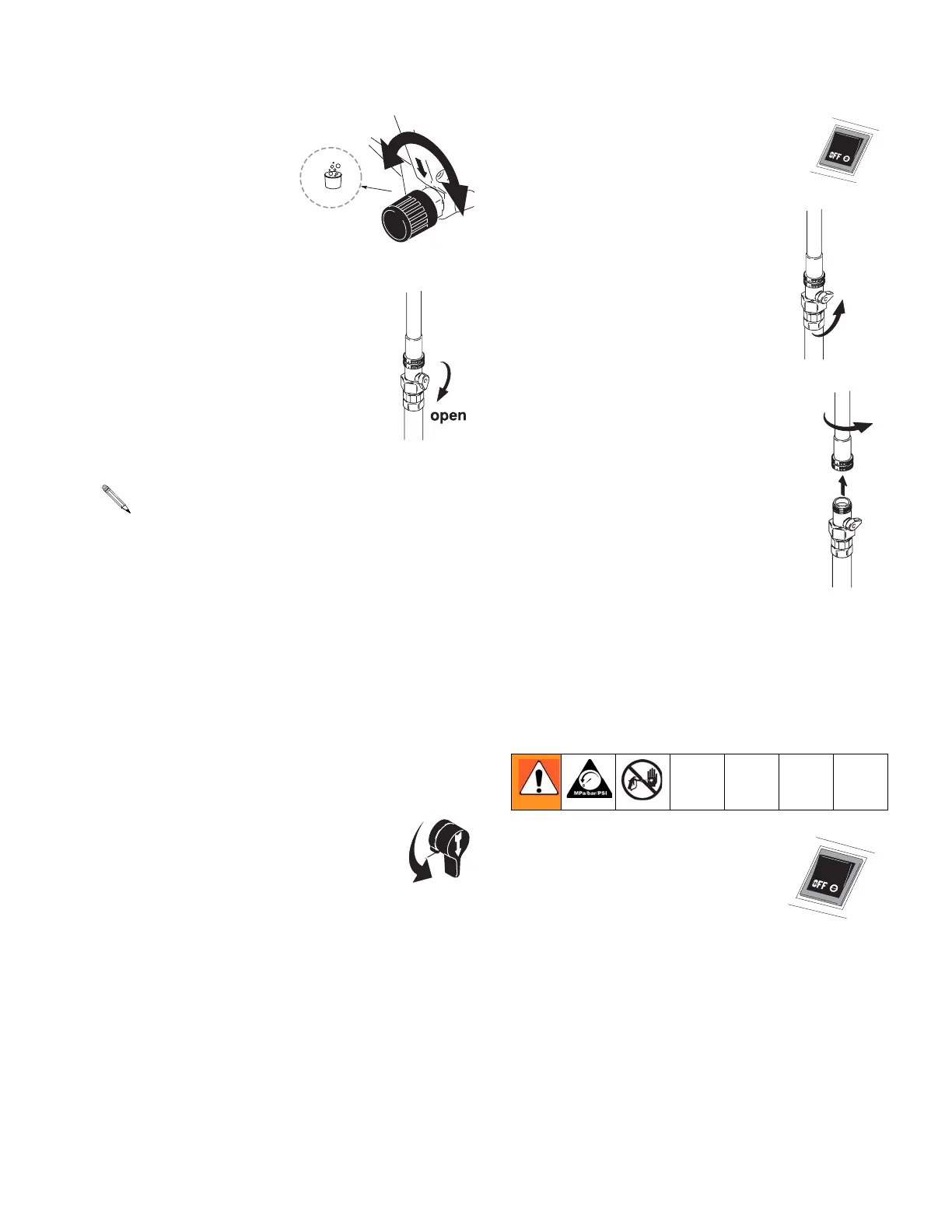

13. Align arrow on
sprayer with pail
symbol on Pressure
Control knob until
pump starts.
14. Open lever on Zip-Flush attach-
ment.
15.
a. Pull and hold gun trigger. Point gun into paint
pail.
b. Turn power switch ON to begin pumping paint in
hose back into paint pail.
c. When water comes out of gun, continue to trig-
ger gun, aiming gun into waste pail.
16. Continue triggering gun into waste pail for 1-2 min-
utes, until relatively clear water comes out of gun.
17. Turn Spray-Prime/Drain valve
to PRIME.
18. Circulate water through sprayer, into waste pail, for
20 seconds.
19. Turn power switch OFF.
20. Close Zip-Flush attachment.
Turn off garden hose.
21. Unscrew Zip-Flush attachment
from suction tube.
Cleaning the Pump Fluid Filter
(1500, 1700, 1900 models only)
The pump fluid filter prevents particles from entering
paint hose. Although it is self-cleaning, remove and
clean it after each use to insure peak performance.
1. Turn power switch OFF.
2. Disconnect airless spray hose
from sprayer and remove pump
fluid filter.
Step 15 is for returning paint in hose back to paint
pail. One 50-ft (15-m) hose holds approximately
1-quart (1-liter) of paint.
