ML2000 Series Mortise Lock
Installation Instructions
Used with VN Escutcheon Trim and V Series Indicators
FM521 08/19
Copyright © 2019, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

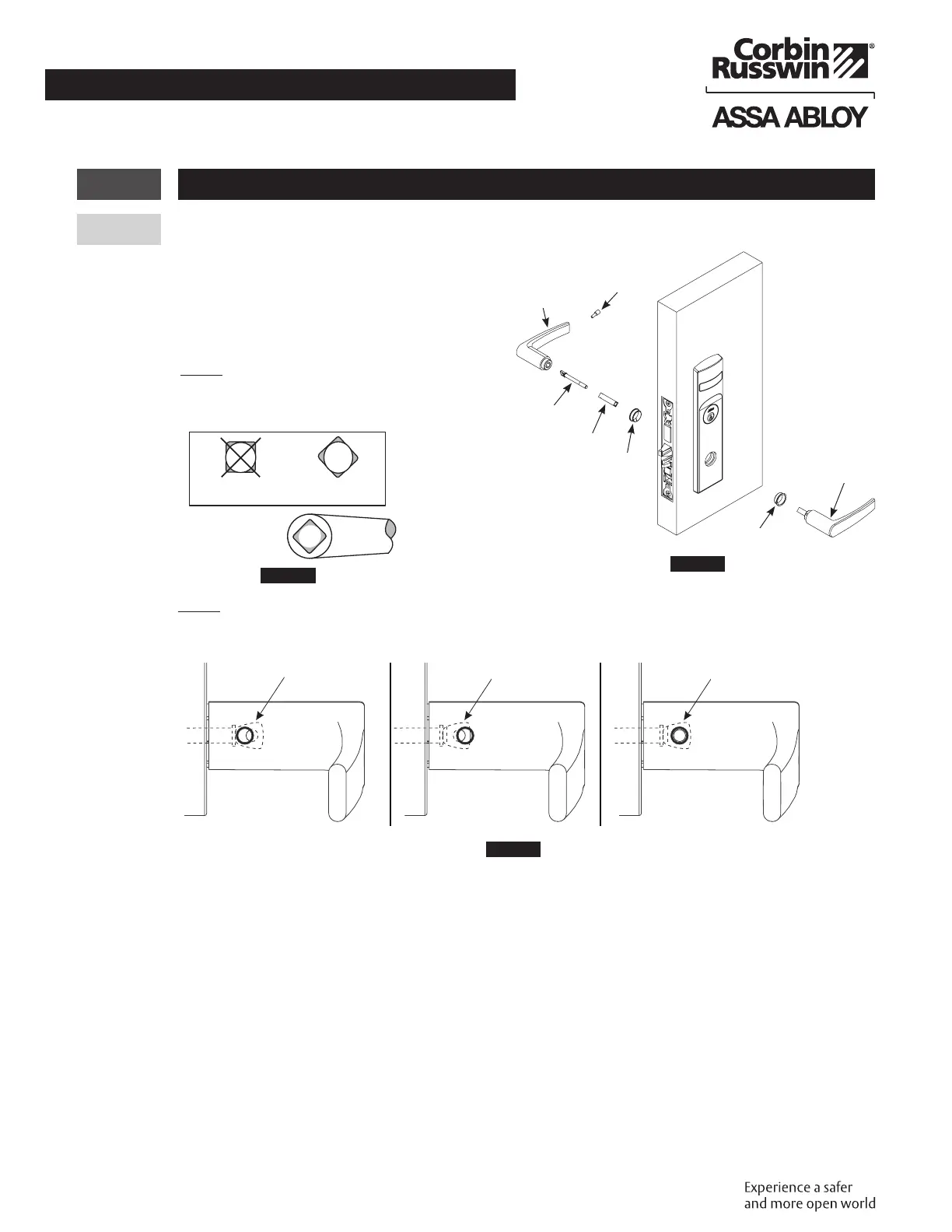

5 Installation Instructions (cont.)
f STANDARD LEVERS ONLY: Attach Levers
1. Install outside lever or knob by inserting
adjustment bolt on opposite side of door.
Tighten bolt finger-tight and loosen a few turns.
2. Install inside lever or knob by inserting dowel
screw. (Figure14)
Figure15
Lever
GOODBAD
NOTE:
Use correct spindle orientation.
(Figure15)
NOTE:
Make sure adjustment bolt hole is aligned with lever or knob hole. (Figure16)
Figure16
Misaligned.
Adjustment bolt
needs to be threaded
in farther.
Misaligned.
Adjustment bolt needs
to be unthreaded.
Adjustment bolt fully
aligned with lever
hole and ready to be
secured with set screw.
Adjustment Bolt
AdjustmentBolt
Adjustment Bolt
Figure14
Bushing
OutsideLevel
plus Spindle
Bushing
Inside
Spindle
Adjustment
Bolt
Dowel
Screw
Inside
Lever
