ML2000 Series Mortise Lock
Installation Instructions
Used with VN Escutcheon Trim and V Series Indicators
FM521 08/19
Copyright © 2019, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

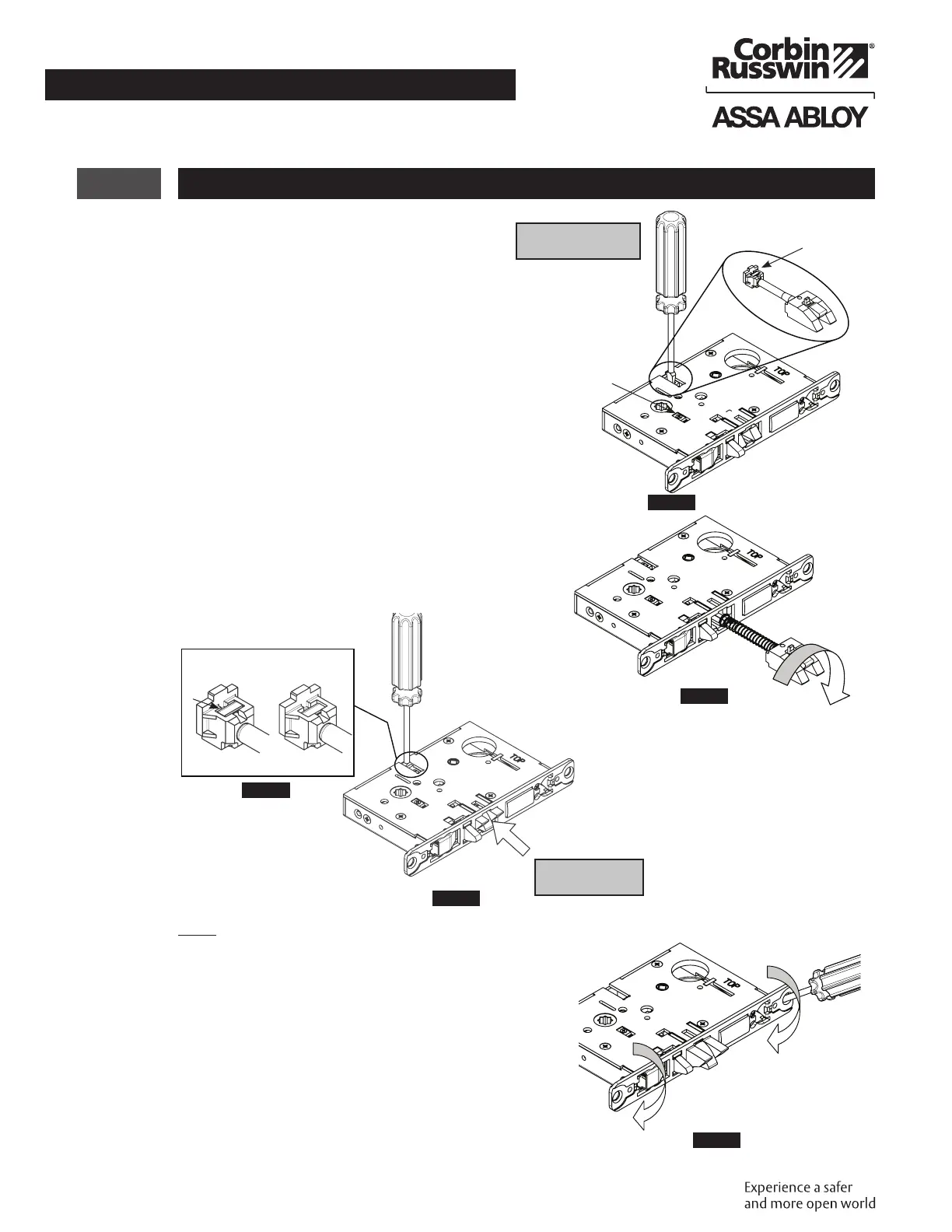

3 Mortise Lock Handing Instructions
1. Move red locking screw to side of lock body
being locked.
2. Push in latch. Depress catch plate with
screwdriver. (Figure2)
3. Pull latch out of lock body and turn latch
over. (Figure3)
4. Push in latch while holding screwdriver
behind latch tail. (Figure5)
Figure4
Figure5
MAKE SURE CATCH PLATE IS EVEN
WITH TOP SURFACE
GOOD BAD
WARNING: LOCK-IN CAN
OCCUR IF LATCH IS NOT
PROPERLY INSTALLED
Note:
Ensure that latch is pushed in until catch plate is
no longer depressed. (Figure4)
5. Rotate lock front to match bevel of door as
shown. (Figure6)
Catch Plate
Figure2
LOCK HANDING IS
CRITICAL TO ENSURE LOCK
FUNCTIONS PROPERLY
RED Locking Screw
Figure3
Figure6
