ML2000 Series Mortise Lock
Installation Instructions
Used with VN Escutcheon Trim and V Series Indicators
FM521 08/19
Copyright © 2019, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
5 Installation Instructions (cont.)
g Install Outside Front
1. Tighten the two (2) lock screws completely.
2. Attach the outside front with two (2) flat head screws
#8-32 x 1/4". (Figure17)
h Perform Functional Check
1. Insert key into cylinder and rotate.
• There should be no friction against lock case or any other obstructions.
2. Check that key retracts latch.
• Key should rotate freely.
3. Throw deadbolt (if present).
• Check that key retracts both deadbolt and latch.
4. Test inside lever.
• Ensure it retracts latch and deadbolt (if installed).
5. Verify indicator displays correct status when locked and unlocked. See step 4 if it does not.
#8-32 x 2-1/4"
Screws
Lock
Screw
Outside
Front
Lock
Screw

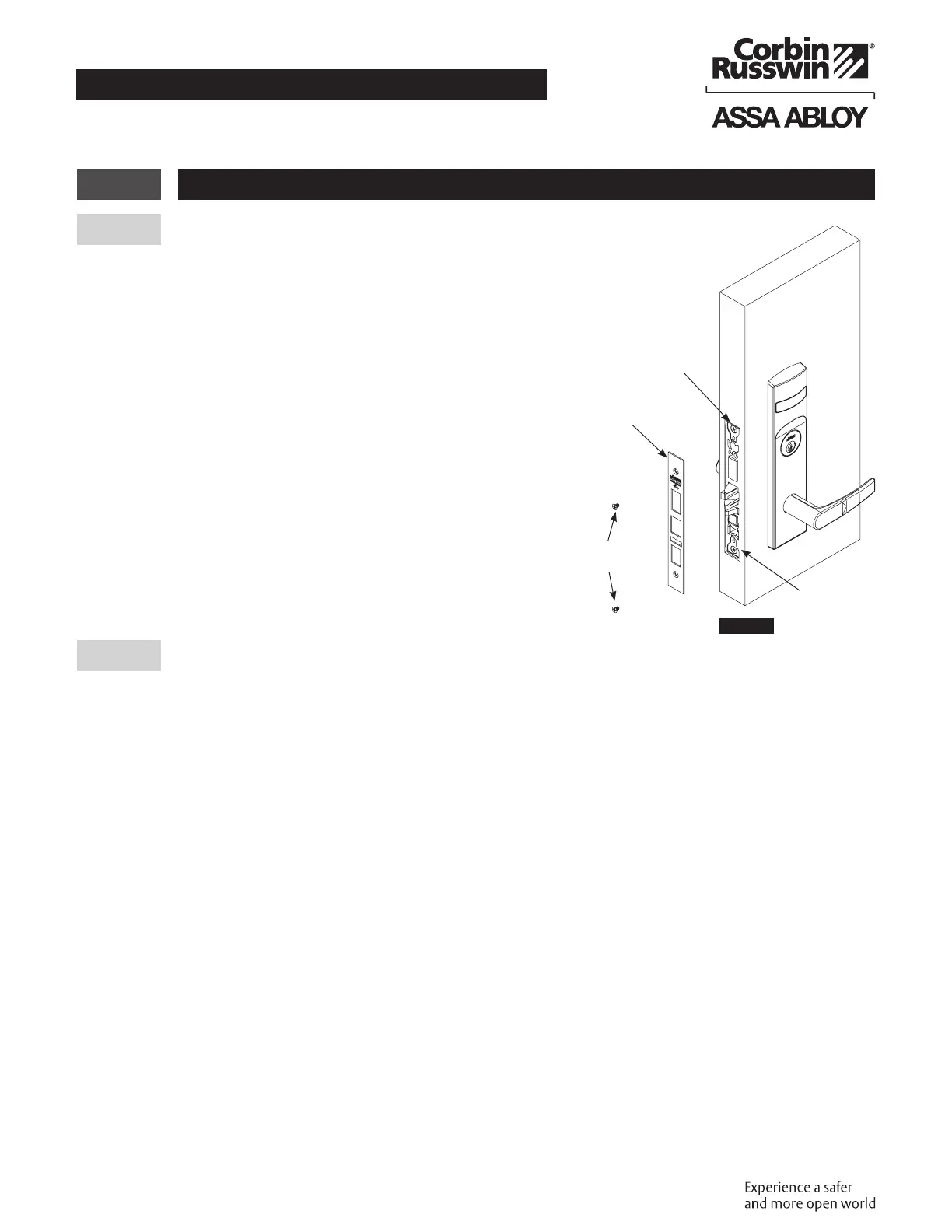

Figure17
To Next Page
