• Remove
1
/
4
"-20 Set Screws on Interior Pivot Bracket Post.
• Unscrew and remove Conehead Union (
5
/
16
"-18).
• Remove Metal Washer, Alignment Bushing and Spacer.
2.1.5 Remove Vertical Door Mount
Shipping Board
Interior Pivot Bracket Post
Panic Device
Set Screws
5
Shipping Board
Metal Washer
Alignment
Bushing and
Spacer
Mating Pull
Conehead
Union
• Unscrew and remove the Conehead Union (
5
/
16
"-18).
• Remove the Deco End Cap.
• Remove the Metal Washer, Alignment Bushing and
Spacer.

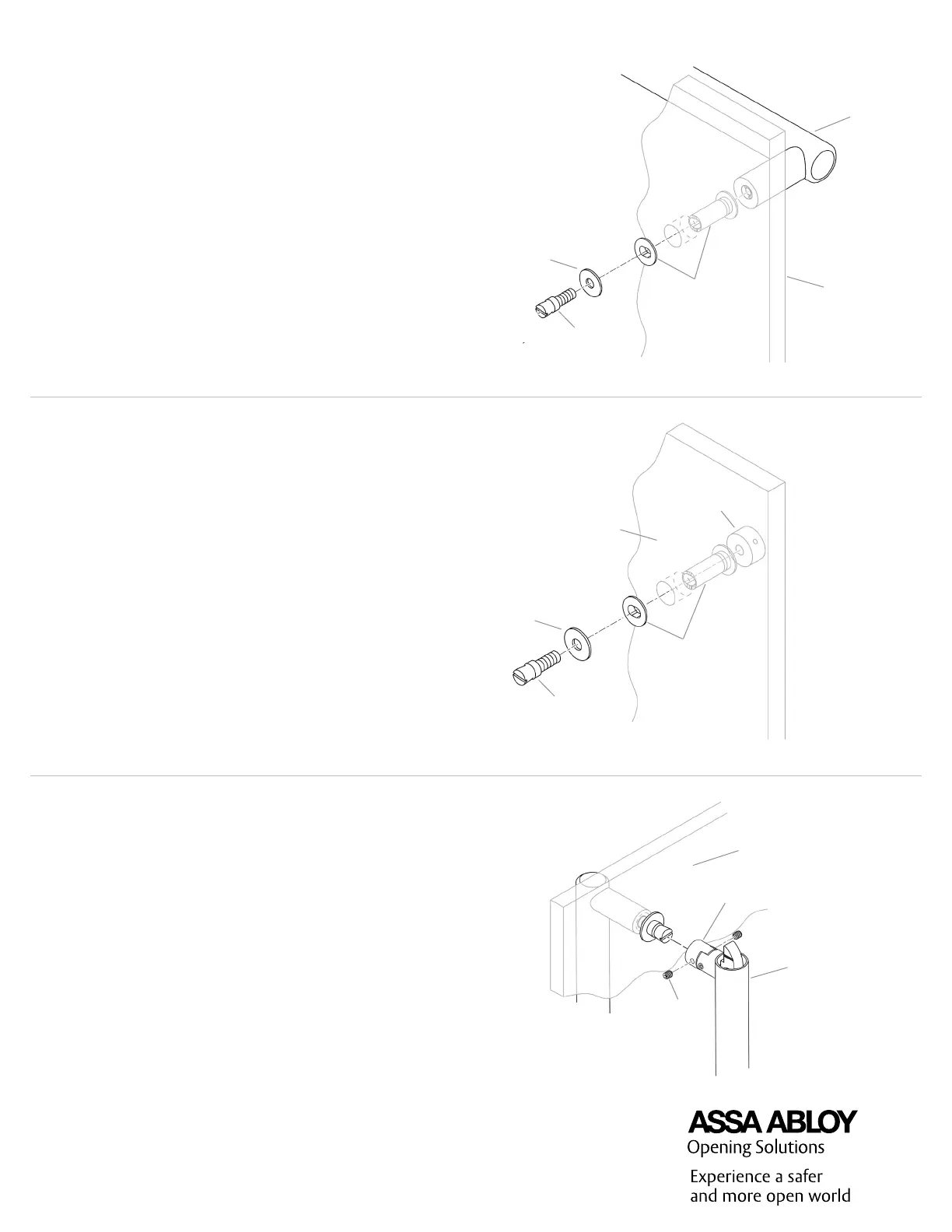

2.1.3 Remove Horizontal Door Mount
• Unscrew and remove the Conehead Union (
5
/
16
"-18).
• Remove the Metal Washer, and Alignment Bushing and
Spacer.
Shipping Board
Deco End Cap
Metal Washer
Conehead
Union
Alignment
Bushing and
Spacer
2.1.4 Remove Horizontal Door Mount (Deco End Cap Option)
