Copyright © 2020-2021, ASSA ABLOY Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Inc. is prohibited.
9

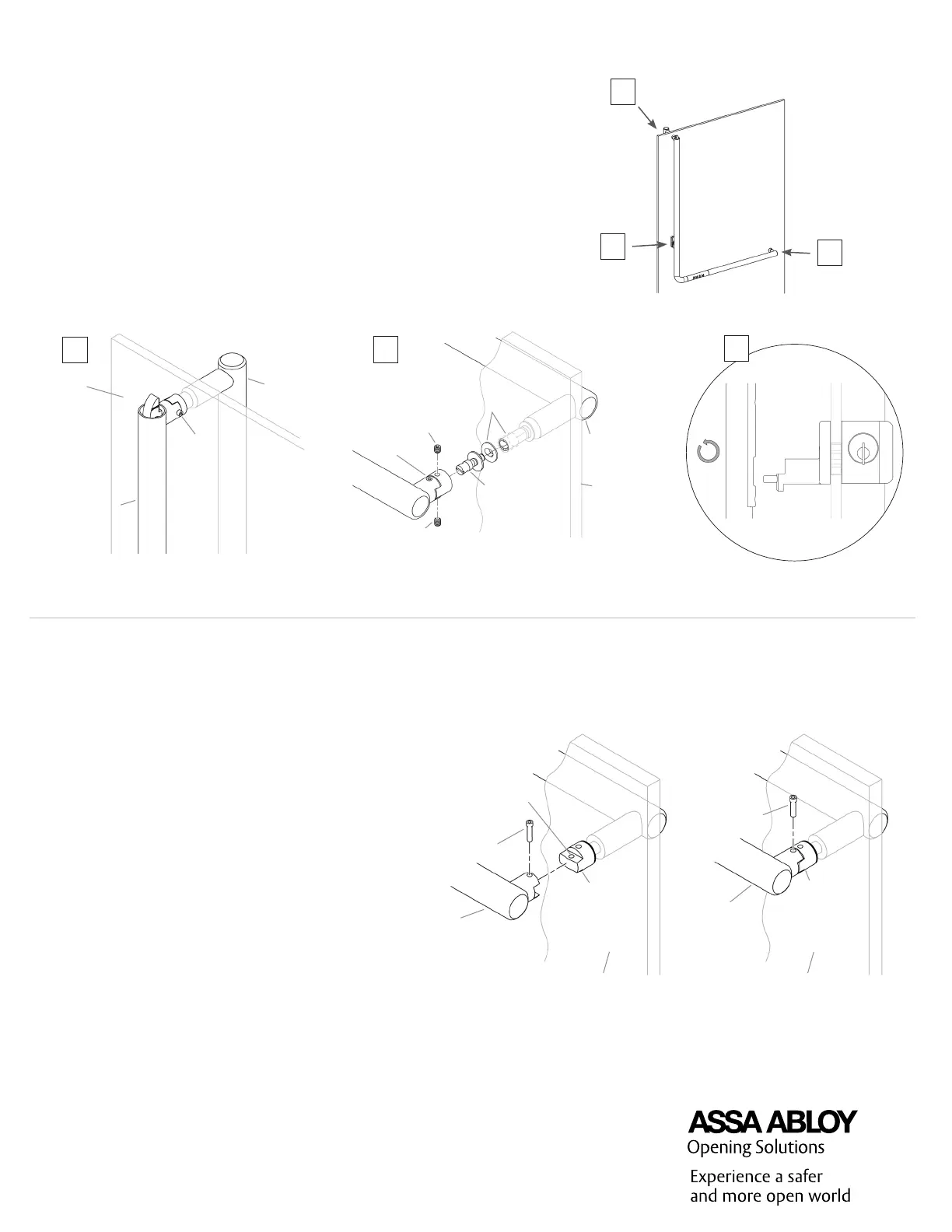

2.2.8 Install Panic Device on Door
Use the tilt method to install the Panic Device Assembly on the
Door.
Attach the Panic Device Assembly to the Conehead Union
(
5
/
16
"-18).
Apply a small drop of Threadlocker to the threads of the Set Screws
(
1
/
4
"-20).
Install the Set Screws (
1
/
4
"-20) and secure until tight.
A
B
C
A
Mating Pull
Assembly
Panic Device
Assembly
Set Screw Pin
Door
C
Door
Synthetic
Multi-Purpose
Grease
Set Screw Pin
Interior
Horizontal
Post
Set Screw Pin
Interior
Horizontal
Post
Panic Device
Assembly
Panic Device
Assembly
Door
2.2.9 Horizontal End Threadlocker and Lube Application
Remove the Set Screw Pin and move the Panic
Device Assembly to the side to allow access to
the Interior Horizontal Post hole.
Apply Synthetic Multi-Purpose Grease (pea size)
to the inside of the hole of the Interior
Horizontal Post.
Install the Panic Device Assembly Handle
back on the Panic Device Assembly.
Apply a small drop of Threadlocker to
the threads of the Set Screw Pin.
Install the Set Screw Pin.
Mating Pull
Assembly
Set
Screw Pin
Conehead
Union
Set Screw
Set Screw
Door
Alignment
Bushing and Spacer
B
