Actuator Post
Assembly
Latch and
Actuator
Gauge
Latch and
Actuator
Gauge
Actuator Post
Assembly
10
2.2.10 Align Actuator Gauge
• Install the Latch and Actuator Gauge in the bottom of
the Actuator Post Assembly.
• If the Latch and Actuator Gauge cannot be installed,
the alignment must be adjusted.
• Realign the Panic Device Assembly as necessary. Refer
to Section 2.2.2, Install Alignment Bushing and Spacer.
• Do not operate the Panic Device if the Latch and
Actuator Gauge does not fit.
3. Latch / Door Stop Adjustment / Cylinder Recommendations
3.1 Installation and Adjustment of Door Stop-Strike
INSTALLATION
• Attach the strike to the header using the Socket Cap
Screws (
5
/
16
"-18).
• Close the door. The door should come to rest on the
rubber stop pads.
• There should be approximately
1
/
16
" play between the latch
face and the strike face.
• The retractable latch should automatically move upward
and engage in the strike.
• If the retractable latch does not engage in the strike, move
the door stops in.
• If the retractable latch is loose inside the strike (door is
rattling), move the door stops out.
• Tighten 8-32 screws to lock down adjustment door stops.
ADJUSTMENT
• To adjust the stop, loosen the 8-32 set screws and remove
the rubber end pieces.
• Use an Allen Wrench (
1
/
4
") to rotate in or out as needed.

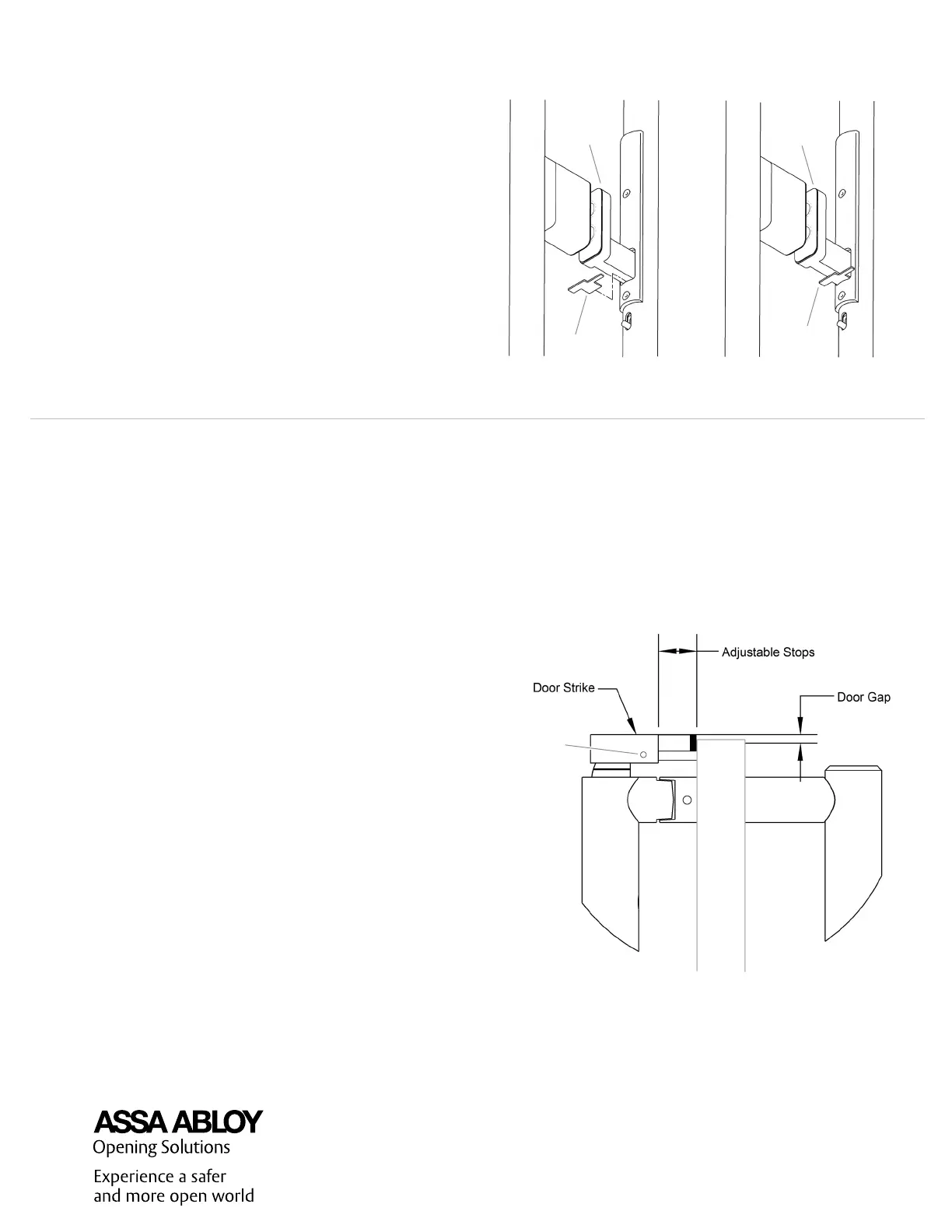

Figure 3-1
Door Mount
8-32 Set
Screws
