2.2.6 Install Horizontal Door Mount
• Place one side of Alignment Bushing and Spacer in the hole of the door.
• When placing the other side of the Alignment Bushing in the hole
of the door, orient the pin and push into other side of spacer.
• Position the Mating Pull Assembly against the exterior side of
the Door.
• Apply a small drop of Threadlocker to the threads of the Stud (
5
/
16
"-18).
• Slide the Metal Washer onto the Stud (
5
/
16
"-18) until it sits against
the Conehead Union (
5
/
16
"-18) on the interior side of the Door.
• Slide the Conehead Union (
5
/
16
"-18) with the Metal Washer
through the Alignment Bushing in the hole in the Door.
• Screw the Conehead Union (
5
/
16
"-18) and the Stud (
5
/
16
"-18)
into the Mating Pull Assembly Post until tight.
CAUTION: Depending on weatherstripping, extra metal
washers provided may be required.
2.2.7 Install Horizontal Door Mount (Deco End Cap Option)
• Place one side of Alignment Bushing and Spacer in the hole of the door.
• When placing the other side of the Alignment Bushing in the hole of the
door, orient the pin and push into other side of spacer.
• Apply a small drop of Threadlocker to the threads of the Stud (
5
/
16
"-18).
• Insert the Stud (
5
/
16
"-18) into the Deco End Cap.
• Slide the Stud (
5
/
16
"-18) with the Deco End Cap through the
Alignment Bushing in the hole in the Door on the exterior side of the
door.
• Place the Metal Washer onto the Stud (
5
/
16
"-18) on the interior side of
the Door.
• Apply a small drop of Threadlocker to the threads of the Stud (5/16"-18).
• Screw the Conehead Union (
5
/
16
"-18) onto the Stud (
5
/
16
"-18) on the
interior side of the Door.
CAUTION: Depending on weatherstripping, extra metal
washers provided may be required.

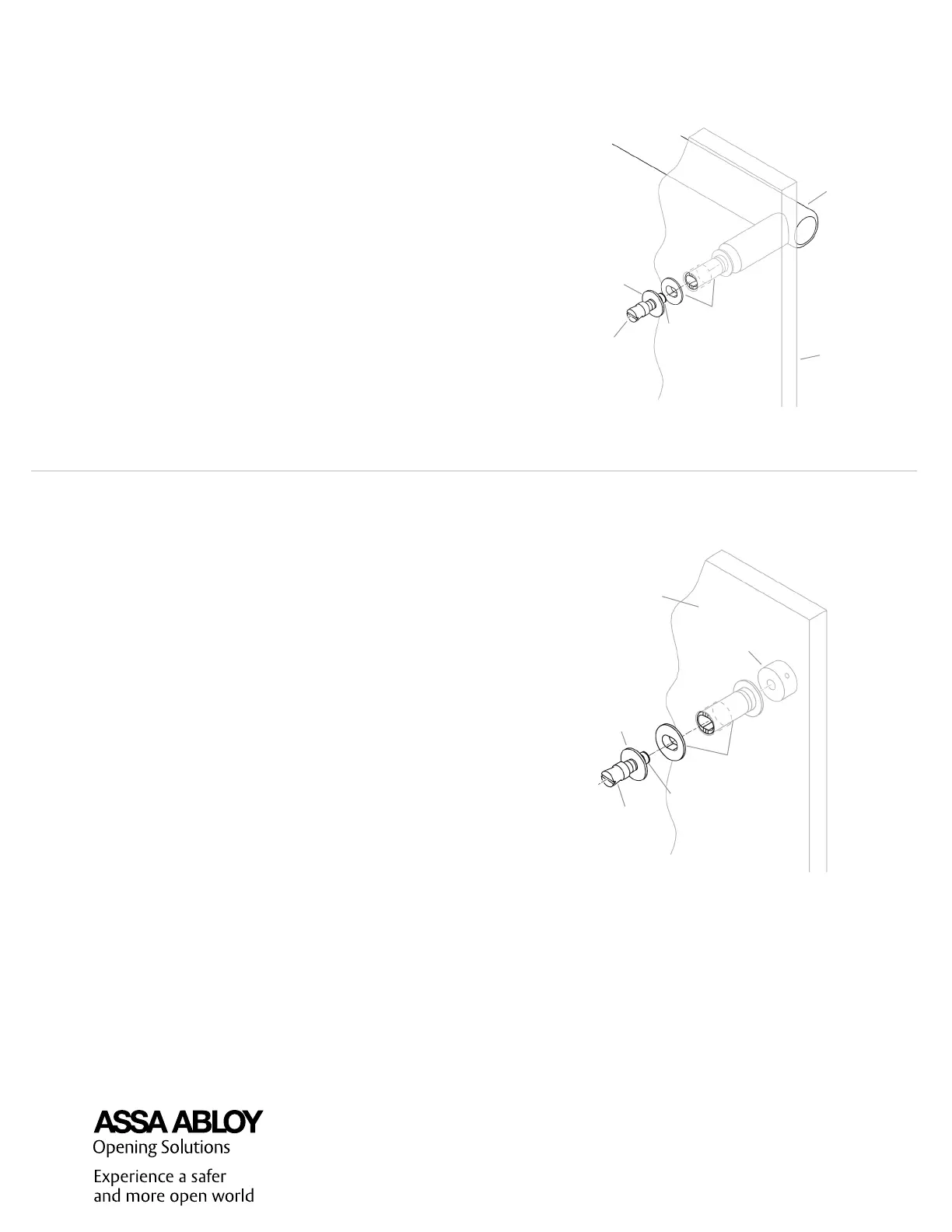

Metal
Washer
Alignment
Bushing
and Spacer
Stud
Mating Pull
Assembly
Door
Conehead
Union
Alignment
Bushing
and Spacer
Deco End Cap
Stud
Door
Conehead
Union
Metal
Washer
