IN100 Mortise Lock
11
Outside Reader Installation (Continued)
NOTE: Cable lengths exaggerated
for illustrative purposes

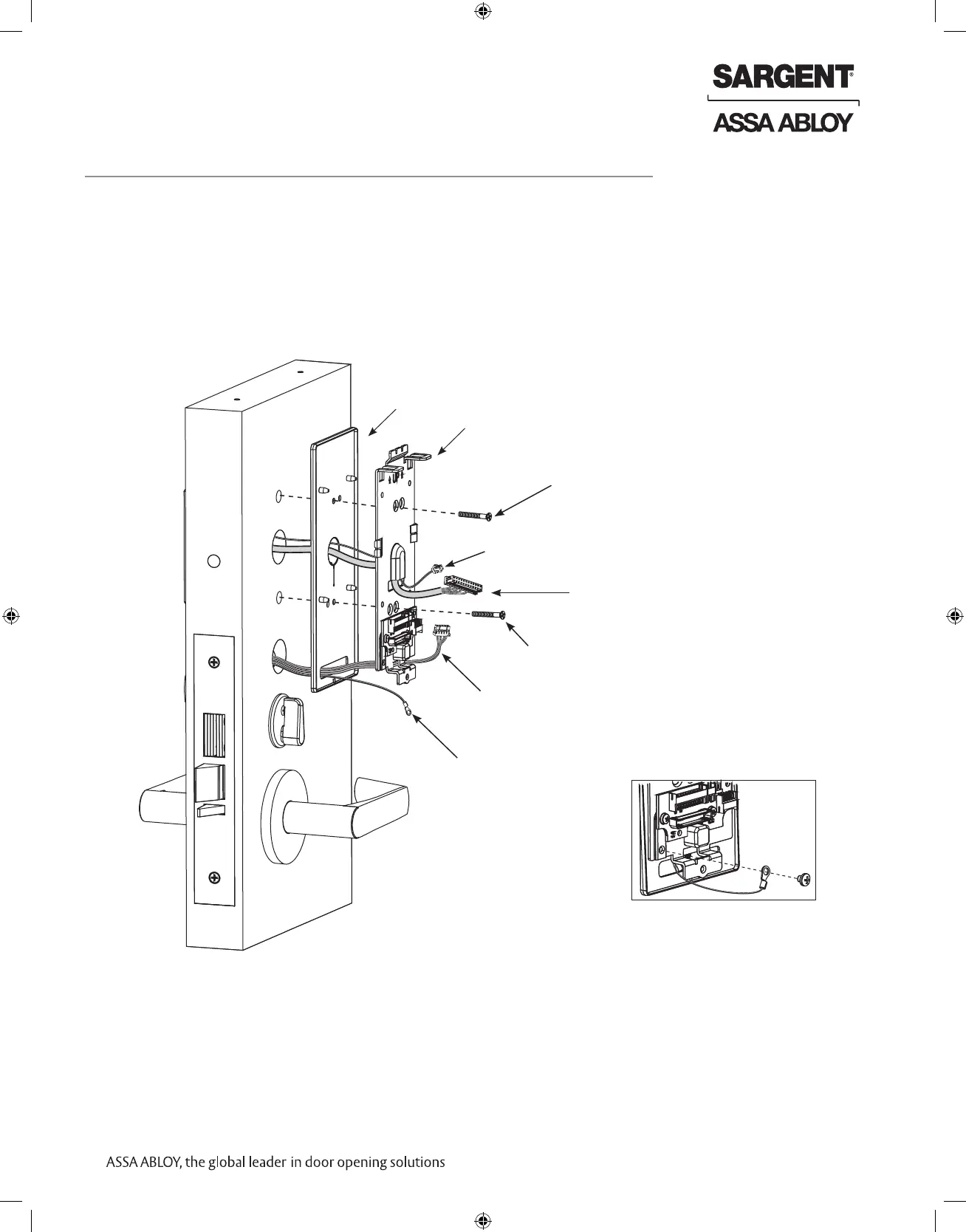

*Gasket is required for outdoor installations. Do not use gasket for fire-rated openings.
If installing with gasket; separate gasket from mounting plate to feed cables/connectors
through holes as indicated (Fig. 11B).
Once cables/connectors are fed through, reattach gasket to mounting plate.
Gasket*
Inside
Mounting Plate
Fig. 11B
Inside of Door
Door Position
Switch (DPS)
Lock Body
Harness
Reader
Harness
Ground Ring
Terminal
Through-bolt
Through-bolt
Fig. 11C
7. Secure ground lug with #6-32 machine screw (Fig.11C).
4. Feed the reader harness and DPS connectors through the inside mounting assembly
(and gasket if required*). See Figure 11B.
IMPORTANT: Do not run wires through bottom flange hole in plate (Fig. 11B, C) - it will damage wires and
the controller connector. Route wires around flange, do not route wires through the flange hole (Fig. 11C).
5. Tuck excess cable into wire hole on inside of door.
6. Begin to secure the mounting assembly by partially tightening the (2) through-bolts on the
inside of the door while ensuring proper alignment as you secure the reader (Fig. 11B).
