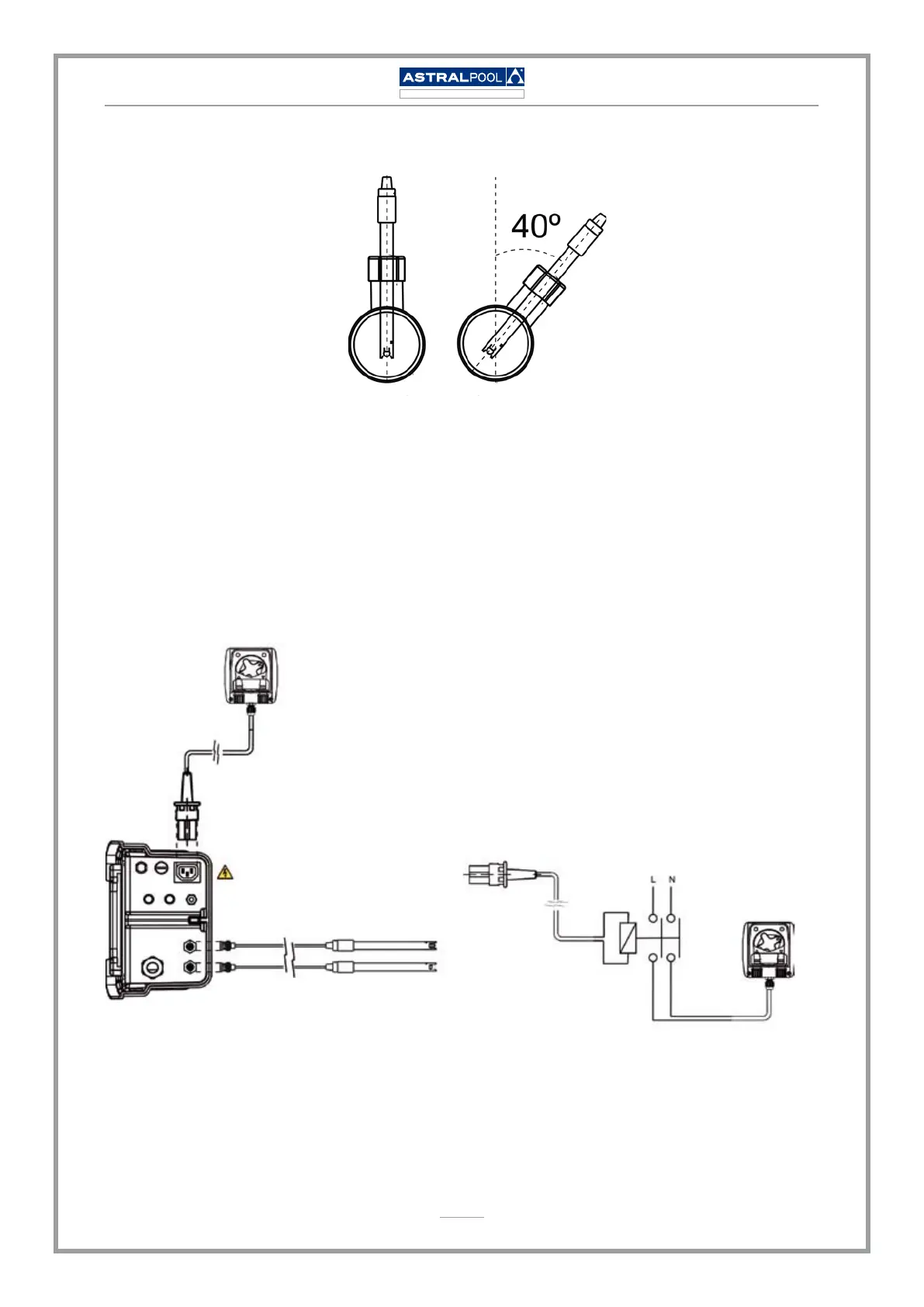

Connect the pH y ORP sensors supplied with the unit to the BNC connectors located on
the bottom part.
The AstralPool Chlore Elite systems have a connector in its bottom part in order to connect
a dosage pump for the water pH control. This dosage pump can be connected through a
CEE22 connector supplied in the package.
Dosage
pump
CEE22 connector
230 V / 500 mA máx.
ORP Sensor
pH Sensor
CEE22 connector
Dosage
pump
Direct connection Indirect connection
(for pump with consumption over 500 mA)
•
•
