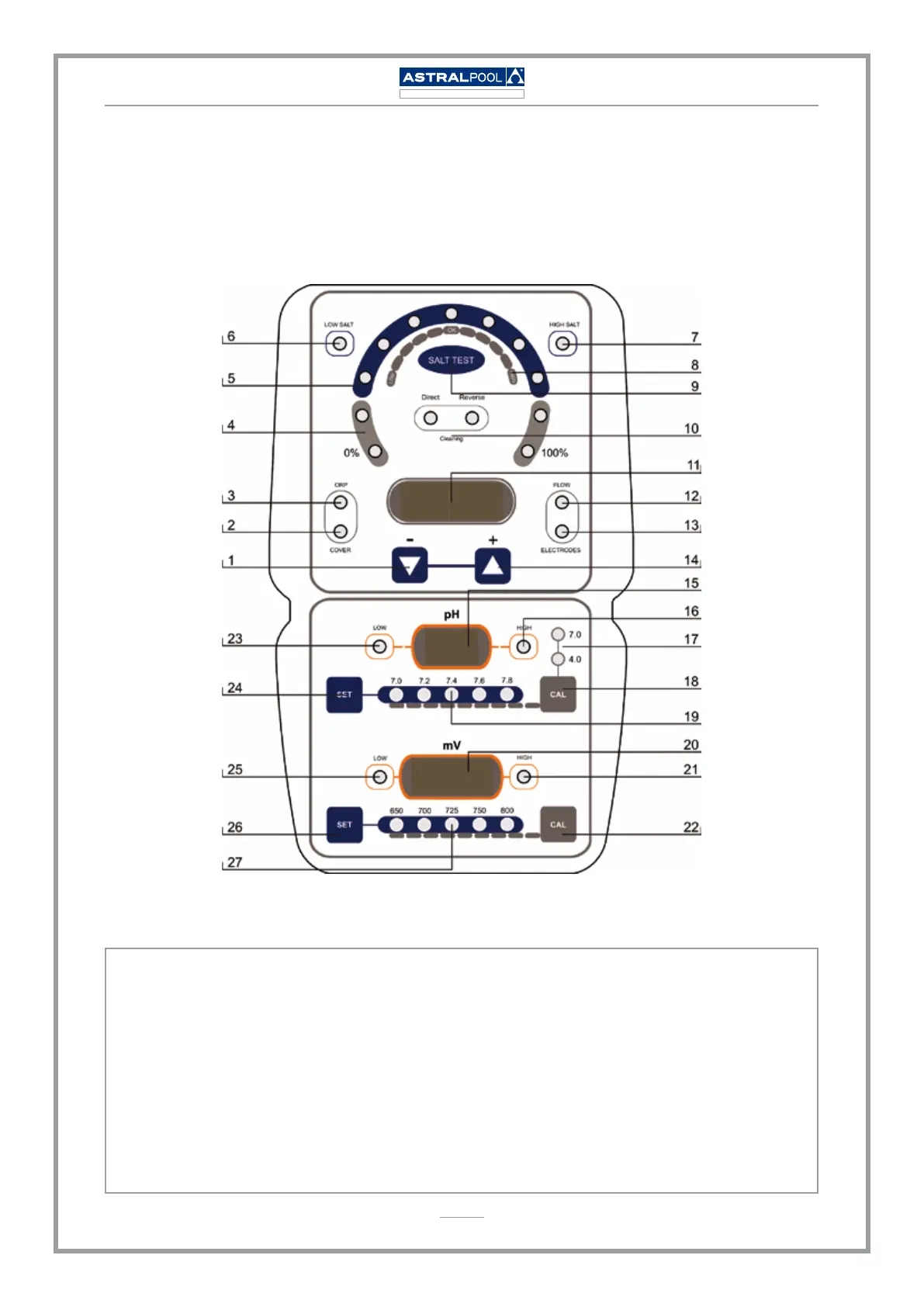

7.6.6. CONTROLS AND INDICATORS
AstralPool Chlore Elite electrolysis systems are equipped with a control panel on the front.
Key “-” (decrease production / programming menu
navigation)
Indicator of activated AUTOMATIC COVER control
Indicator of activated ORP CONTROL
Production scale (%)
PRODUCTION+SALINITY TEST scale
Indicator of LOW SALINITY
Indicator of HIGH SALINITY
SALINITY scale (qualitative)
Key for “SALINITY TEST”
SELF-CLEANING indicators (DIRECT/REVERSE)
polarity
Display of SYSTEM INFORMATION
Indicator of FLOW ALARM
Indicator of ELECTRODE passivation ALARM
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Key “+” (increase production / programming menu
navigation)
Display of water pH
Indicator of HIGH PH ALARM (> 8.5)
Indicator of pH CALIBRATION SOLUTION [7.0 / 4.0]
Key for pH CALIBRATION MODE
Indicator of PH SETPOINT
Display of water ORP (mV)
Indicator HIGH ORP ALARM ( > 850 mV)
Key for ORP (mV) CALIBRATION MODE
Indicator of LOW PH ALARM (< 6.5)
Key for PH SETPOINT PROGRAMMING
Indicator LOW ORP ALARM ( < 650 mV)
Key for ORP (mV) SETPOINT programming
Indicator of ORP (mV) SETPOINT
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
