2.8.2 Redundant power supply module

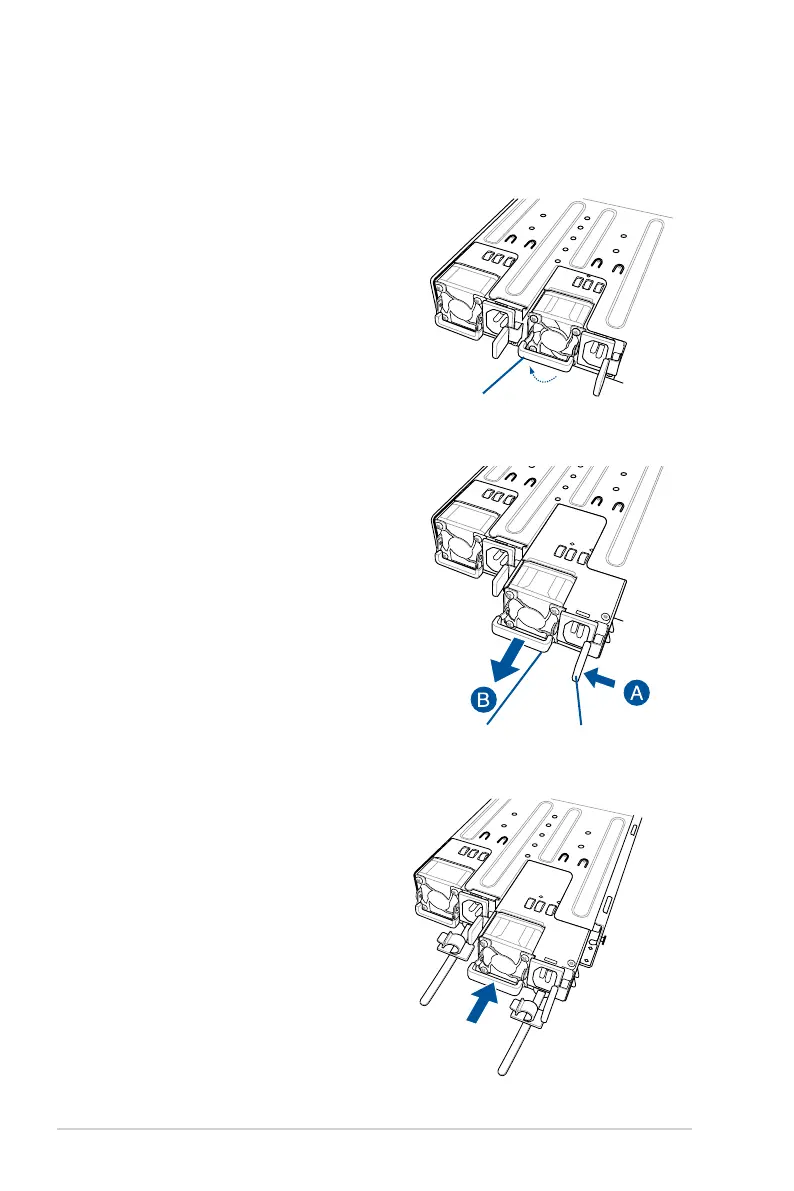

To replace a failed redundant power supply module:
1. Lift up the power supply module lever.
2. Hold the power supply module lever
andpressthePSUlatch,thenpullthe
power supply module out of the system
chassis.
3. Prepare the replacement power supply
module.
4. Insert the replacement power supply
module into the chassis then push it
inwards until the latch locks into place.
Module lever
Module lever PSU latch
