Asus RS720-E9-RS12-E - Page 53

2-27
ASUS RS720-E9 Series

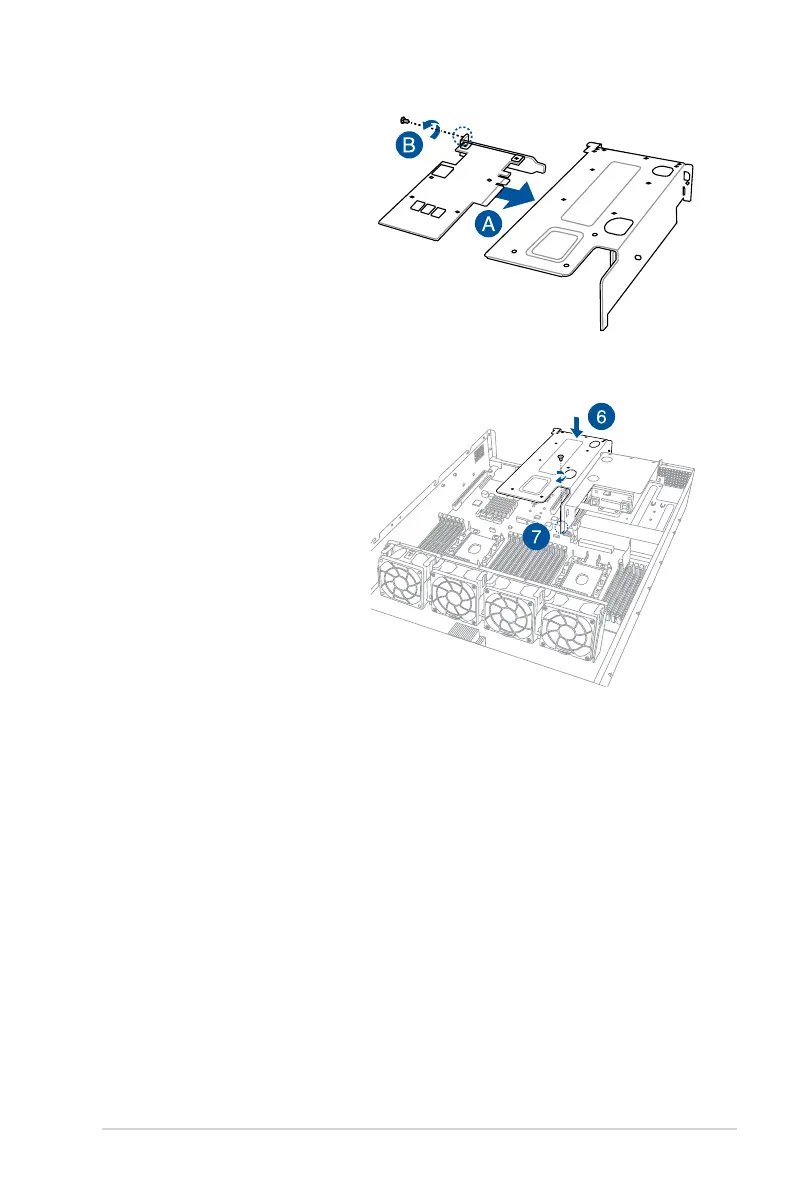

5. Install the PCIE expansion card
into the riser card bracket 2 (A),
then secure the expansion card
with the screw (B).
6. Install the riser card bracket 2
and the PCIE expansion card
assembly into the PCIE3 slot on
the motherboard. Ensure that the
golden connectors of the riser
cardbracket2isrmlyseatedin
place.
7. Secure the riser card bracket 2 to
the motherboard with the screw
removed in step 2.
8. Secure the riser card bracket 2 to the chassis with the screws removed in step 1.
