ASUS RS720-E9 Series
4-13
4.4 Internal connectors

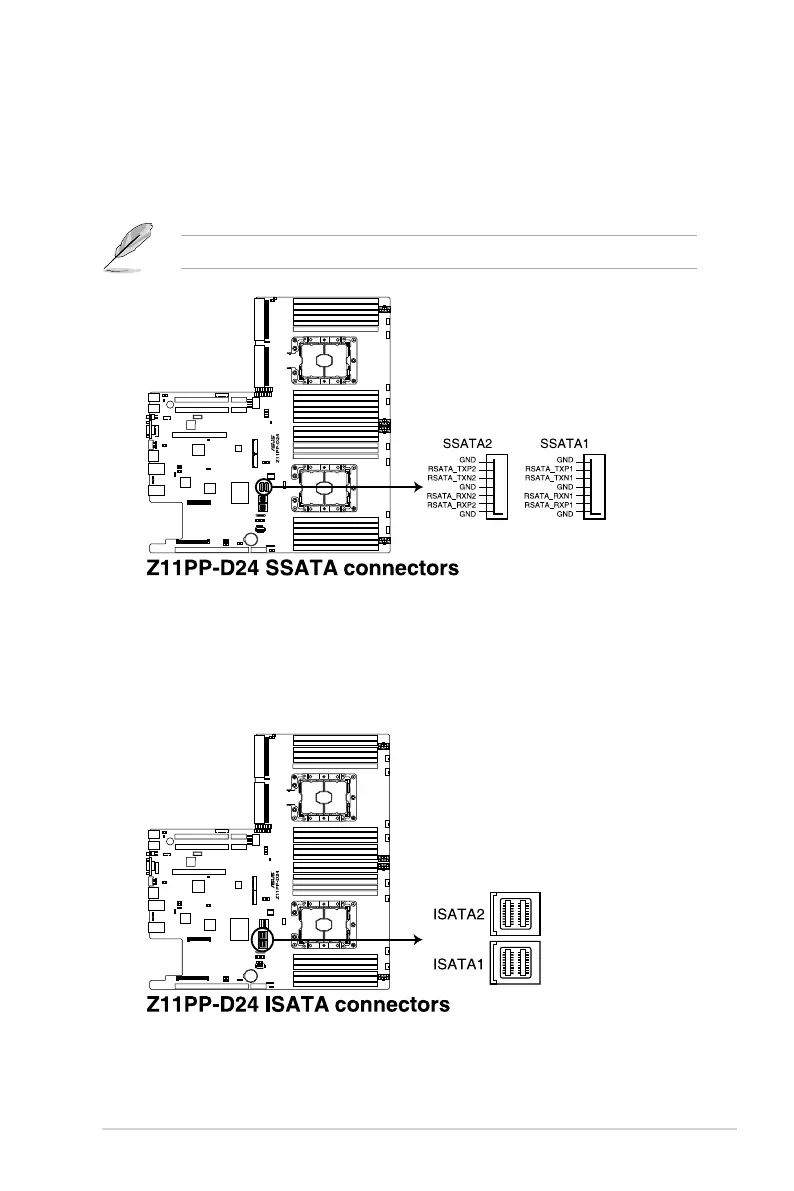

1. Serial ATA connectors (7-pin SSATA1-2)
These connectors, controlled by Intel
®
C621 chipset, are for the Serial ATA signal
cables for Serial ATA hard disk drives (SATA 1 connector is used for the optical drive
by default).
If the SATA M.2 (NGFF1) slot is occupied, the SSATA2 slot will be disabled.
2. Mini-SAS HD connector (ISATA1-2)
This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the
storage technology that supports Serial ATA. Each connector supports up to four
devices.
