Chapter 4: Motherboard Information
4-14

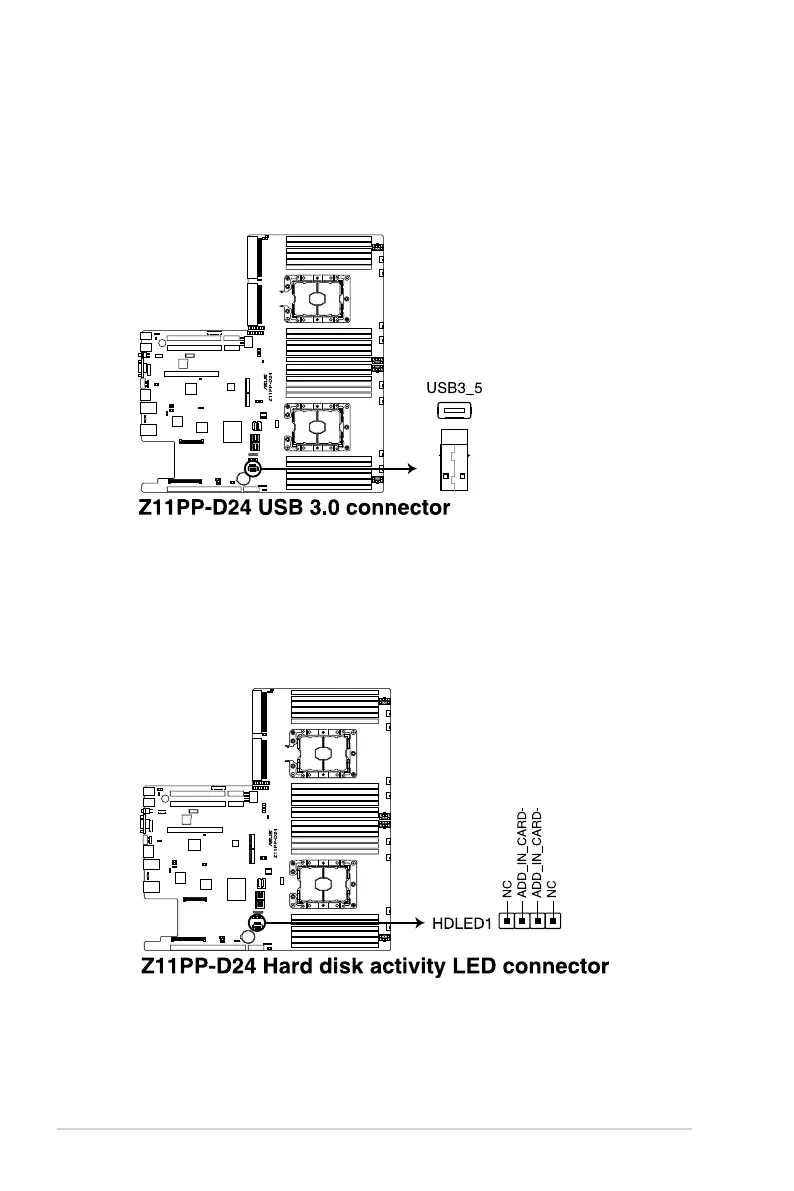

3. USB 3.0 connectors (Type A USB3_5)
The USB3_5 connector is for Type-A USB 3.0 devices. You can enjoy all the benets
of USB 3.0 including faster data transfer speeds of up to 5 Gbps, faster charging time
for USB-chargeable devices, optimized power efciency, and backward compatibility
with USB 2.0.
4. Hard disk activity LED connector (4-pin HDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SAS add-on card. The read or write activities of any device connected to the SATA or
SAS add-on card causes the front panel LED to light up.
