2-31
ASUS RS720-E9 Series

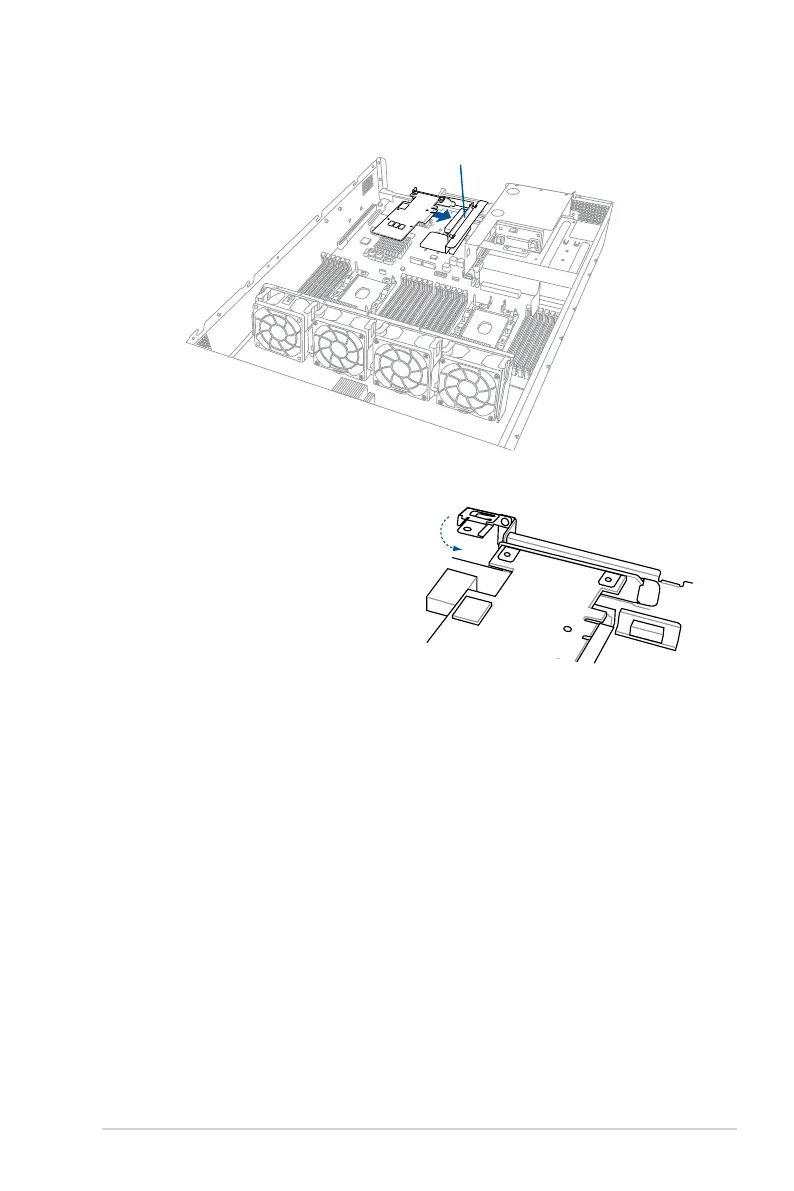

5. Install the PCIE expansion card into the riser card bracket 4.
6. Move the metal lock downward to
secure the riser card bracket 4 and the
PCIE expansion card assembly to the
chassis.
7. Secure the metal lock to the chassis with the screw removed in step 2.
Riser card bracket 4
