Chapter 4: Motherboard Information
4-6

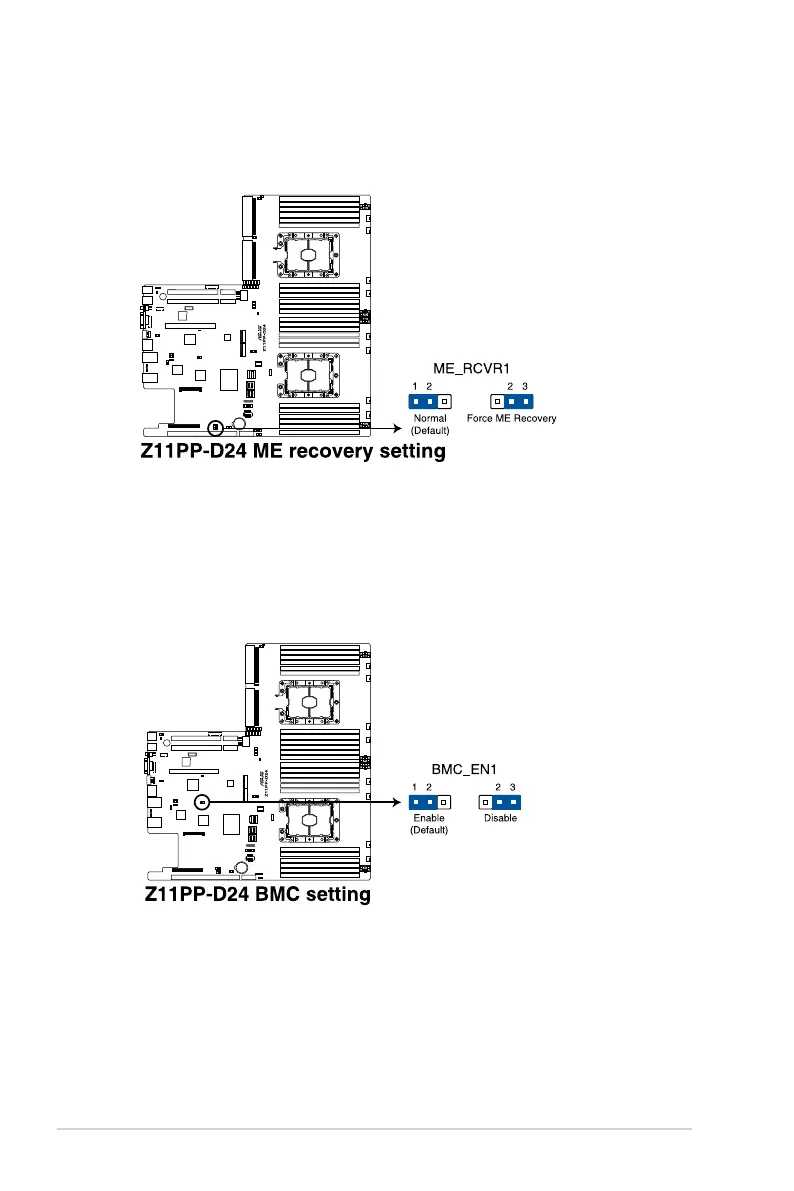

4. ME firmware force recovery setting (3-pin ME_RCVR1)
This jumper allows you to quickly recover the Intel Management Engine (ME) rmware
when it becomes corrupted.
5. Baseboard Management Controller setting (3-pin BMC_EN1)
This jumper allows you to enable (default) or disable on-board BMC. Ensure to set this
BMC jumper to enabled to avoid system fan control and hardware monitor error.
