Asus TS110-E8-PI4 - Internal Connectors

ASUS TS110-E8-PI4
3-5

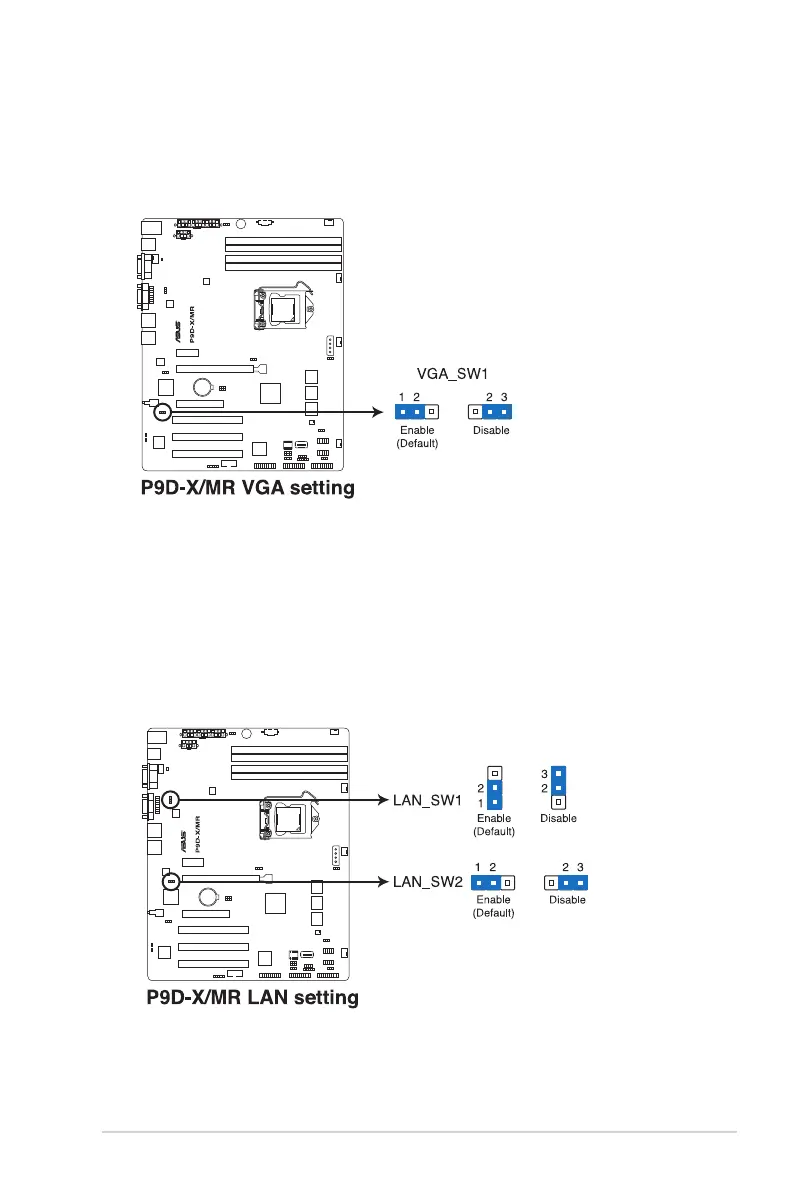

2. VGA controller setting (3-pin VGA_SW1)
ThisjumperallowsyoutoenableordisabletheonboardVGAcontroller.Settopins
1–2toactivatetheVGAfeature.
3. LAN controller setting
(3-pin LAN_SW1, LAN_SW2)
ThesejumpersallowsyoutoenableordisabletheonboardIntel
®
I210AT Gigabit LAN
controllers.Settopins1-2toactivatetheGigabitLANfeature.
