3.3 Internal connectors

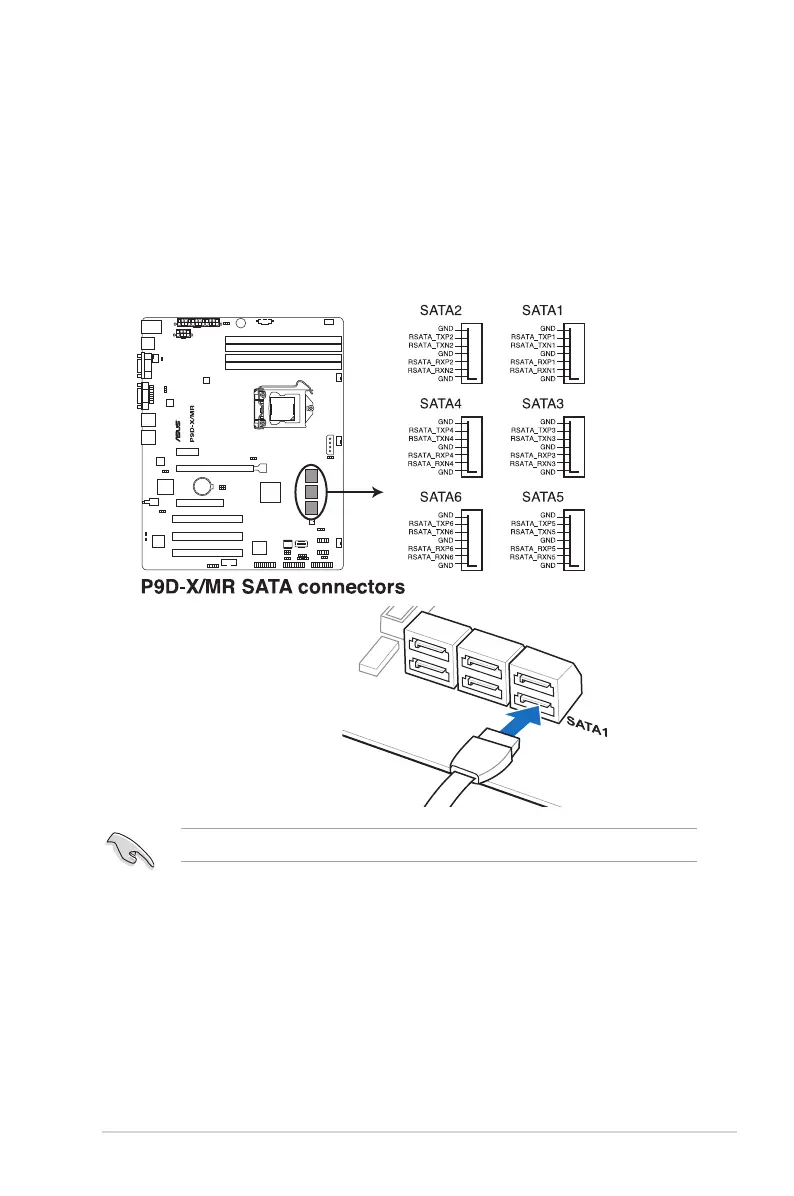

1. Serial ATA 6.0/3.0 Gbps connectors
(7-pin SATA 6Gbps_1-2 connector [Light Blue])
(7-pin SATA 3Gbps_3-6 connector [Black])
Supported by the Intel
®
C222 chipset, these connectors are for the Serial ATA signal
cablesforSerialATAharddiskdrivesthatallowsupto6Gb/sor3Gb/sofdatatransfer
rate.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,RAID1,RAID10,
orRAID5conguration.
The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
