INSTALLATION
INSTALLATION
• If you have two separate one-line wall jacks, use two
line cords (the short cord and one of the long cords). Plug one
end of the short cord into the jack labeled L1 OR L1/L2 on
the back of the telephone. Plug one end of a long cord into
the jack labeled L2 on the back of the phone. Place the cords
in the channels under the phone as shown. Plug the free end of
the line cord for Line 1 into the Line 1 wall jack. Plug the free
end of the line cord for Line 2 into the Line 2 wall jack. Make
sure the cords snap firmly into place at both ends. Then, place
the phone on the Line 1 wall jack mounting studs and pull until
it is held securely.
4 Follow Steps 3 through 6 of “Table Installation” beginning on
page 5.

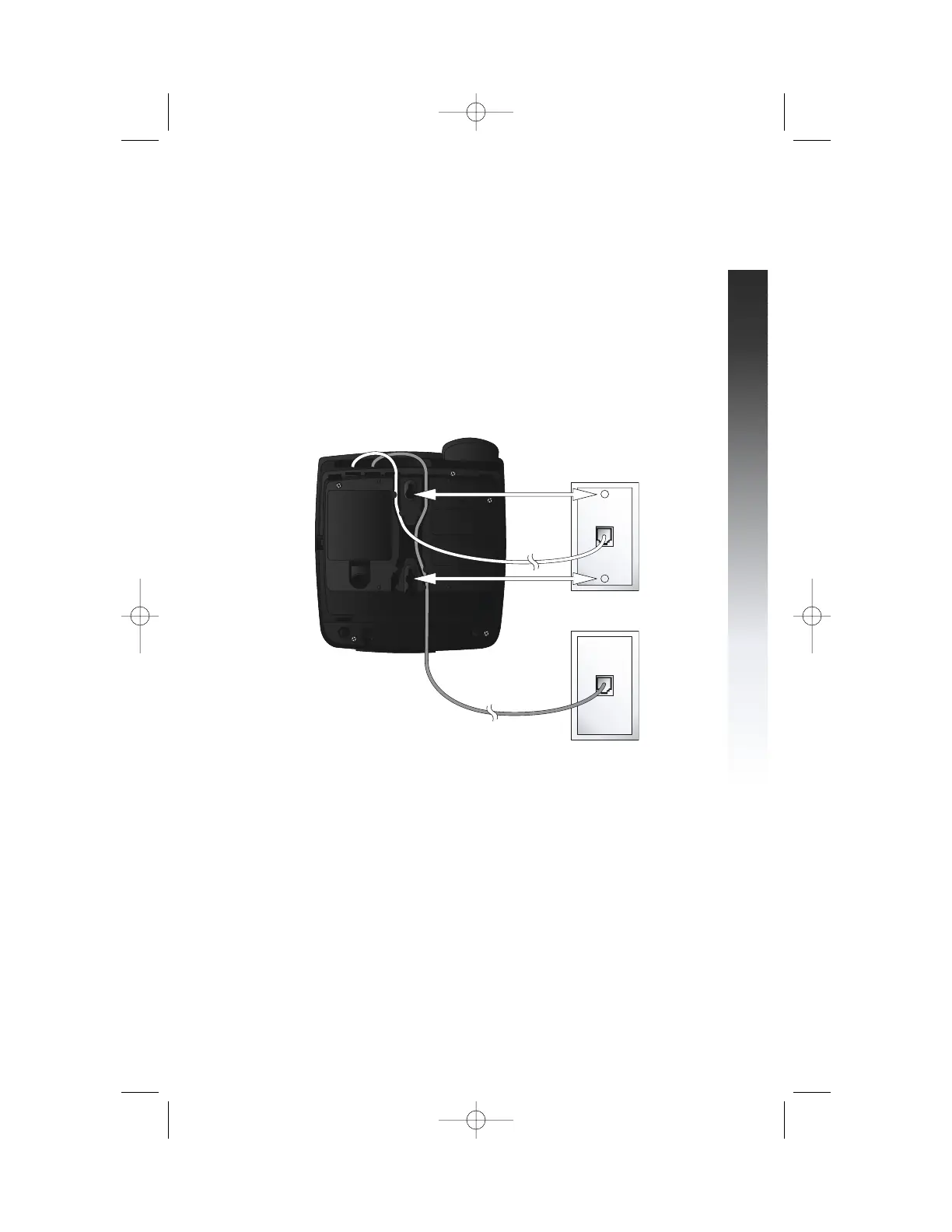

Modular
wall jack
line 2
Modular
wall jack
line 1
