Wall Installation
1 Remove the base wedge.
If the base wedge is attached, remove it following the directions in
“Battery Installation” beginning on page 3.

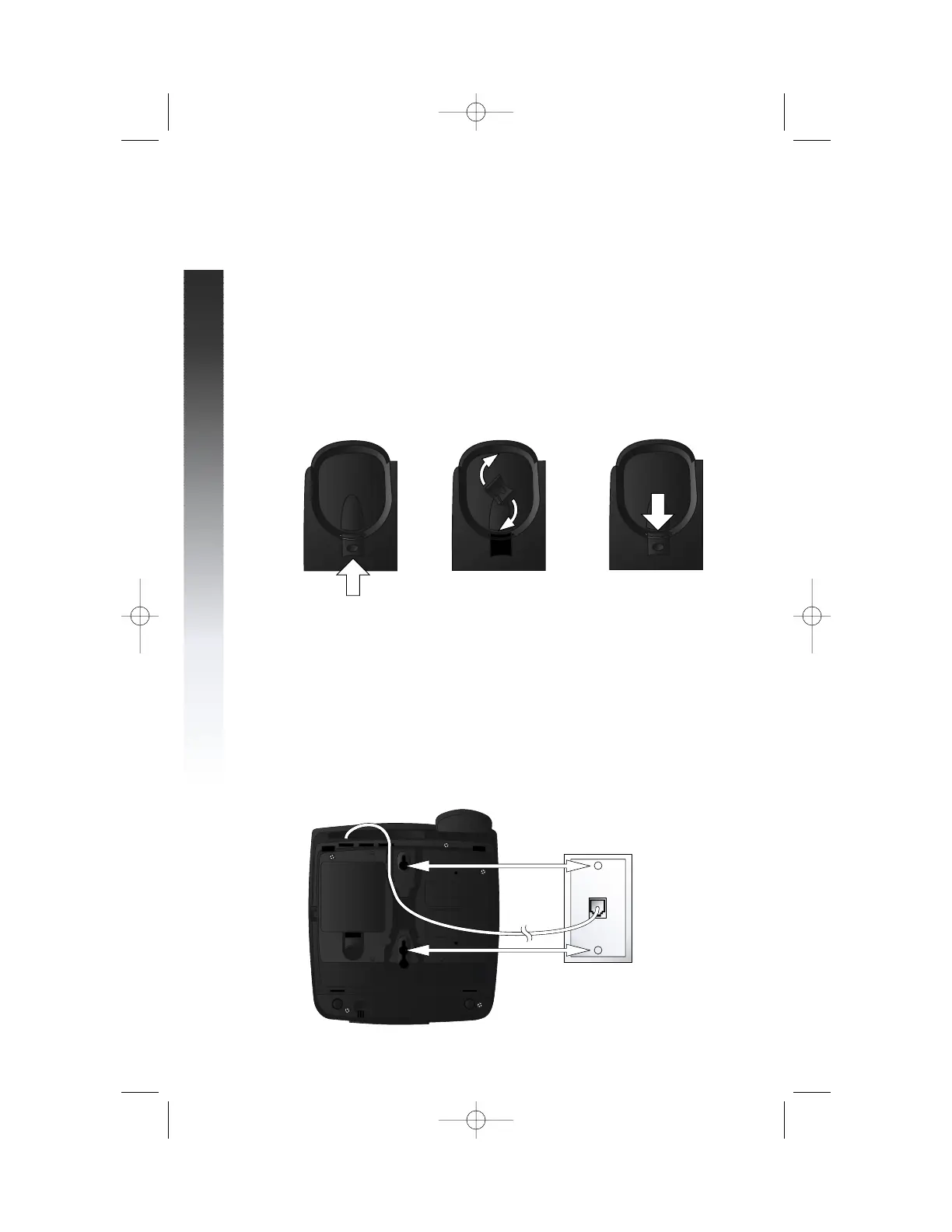

2 Reverse handset tab.
To mount the telephone on a wall, you must reverse the handset
tab. This tab holds the handset when you hang up.
Hold down the switchhook, and slide the tab up and out of its slot.
Turn the tab so that the end with the lip is up. Insert the tab back
into its slot.
3 Connect the line cord(s) to the telephone and your
modular wall jack(s).
• If you have a single two-line wall jack, use only the short
line cord. Plug one end into the jack labeled L1 OR L1/L2
on the back of the telephone. Place the cord in the channel
under the phone as shown. Plug the other end into the wall
jack. Make sure the cord snaps firmly into place. Then, place
the phone on the wall jack mounting studs and pull down until
it is held securely.
8
INSTALLATION
INSTALLATION
Two-line
modular
wall jack
To Next Page
