Getting started
Telephone base and charger installation
Option 2: Installation with separate line jacks
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into a power outlet not
controlled by a wall switch.
Charger installation
DSL filters (not
included) are required
if you have DSL high-
speed Internet service.
The DSL filter must
be plugged into the
telephone wall jack.

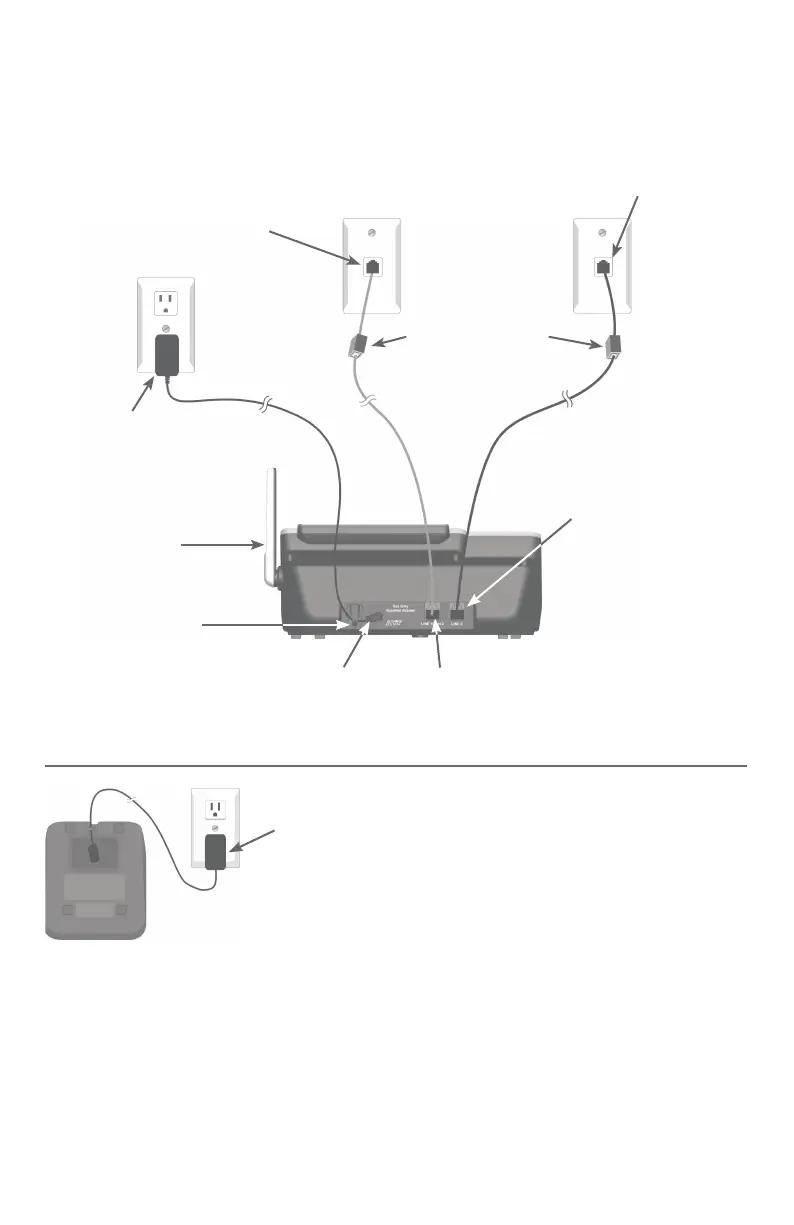

Plug one end of the clear telephone
line cord into the line 1 telephone
wall jack or a DSL filter.
Plug one end of the black
telephone line cord into the line 2
telephone wall jack or a DSL filter.
Plug the large end of the
telephone base power
adapter into a power outlet
not controlled by a wall
switch.
Raise the antenna.
Route the power
adapter cord through
this slot.
Plug the small end of the telephone base
power adapter into the power adapter jack
on the back of the telephone base.
Plug the other end of the clear telephone line
cord into the LINE 1/L1+L2 telephone jack at
the back of the telephone base.
Plug the other end of
the black telephone
line cord into the
LINE 2 telephone jack
at the back of the
telephone base.
