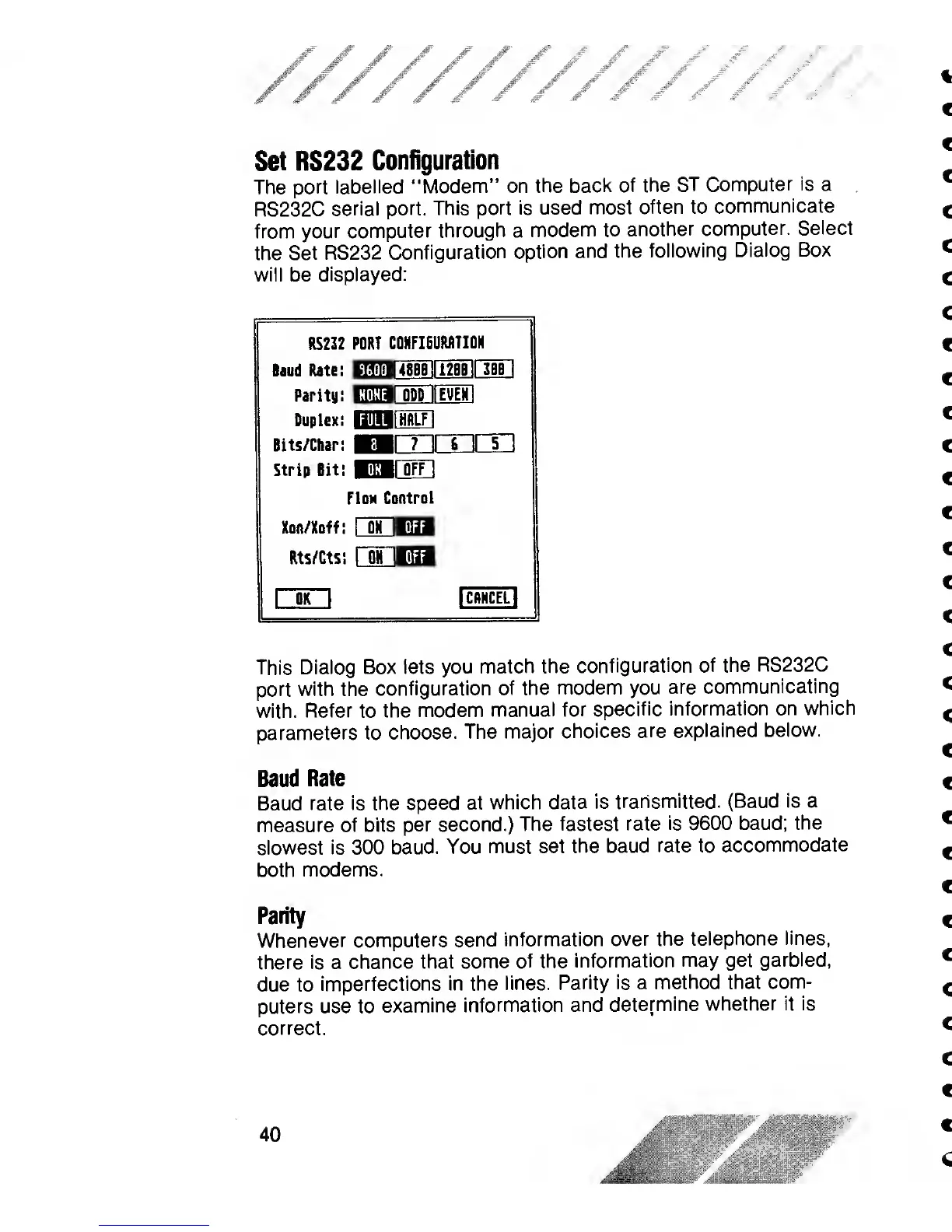

Set RS232
Configuration
The
port
labelled
“Modem” on
the back
of the
ST
Computer
is
a
RS232C
serial
port. This
port is used
most
often to
communicate
from
your computer
through a
modem to
another
computer.
Select
the
Set RS232
Configuration
option
and the
following
Dialog Box
will be
displayed:
RS232
PORT
C0HFI6URRTI0N
Baud
Rate:
K^Til 48BB
II
12BBir3BBl
Parity:
IMHI ODD llEVEHl
Duplex:
HIWfHOLFl
Bits/Char:
—I 7 II oTTl
Strip
Bit!
MiMl OFF
I
FI on
Control
Xon/Xoff
: I
OH
jilJI
Rts/Cts:
l
OH
lUlil
I
OK
I
This
Dialog
Box
lets
you
match the
configuration
of the RS232C
port with the
configuration
of the
modem you
are communicating
with.
Refer
to the
modem
manual
for
specific
information
on which
parameters to
choose. The
major
choices
are
explained
below.
Baud Rate
Baud rate is the
speed at
which
data is
transmitted.
(Baud
is
a
measure of bits
per second.)
The
fastest
rate is
9600 baud; the
slowest
is 300
baud. You
must set
the baud
rate to
accommodate
both modems.
Parity
Whenever computers
send
information
over the
telephone
lines,
there is a
chance that
some of
the
information
may get
garbled,
due
to
imperfections
in the
lines.
Parity is a
method that
com-
puters use to
examine
information and
determine
whether it is
correct.
40
