Atari 800

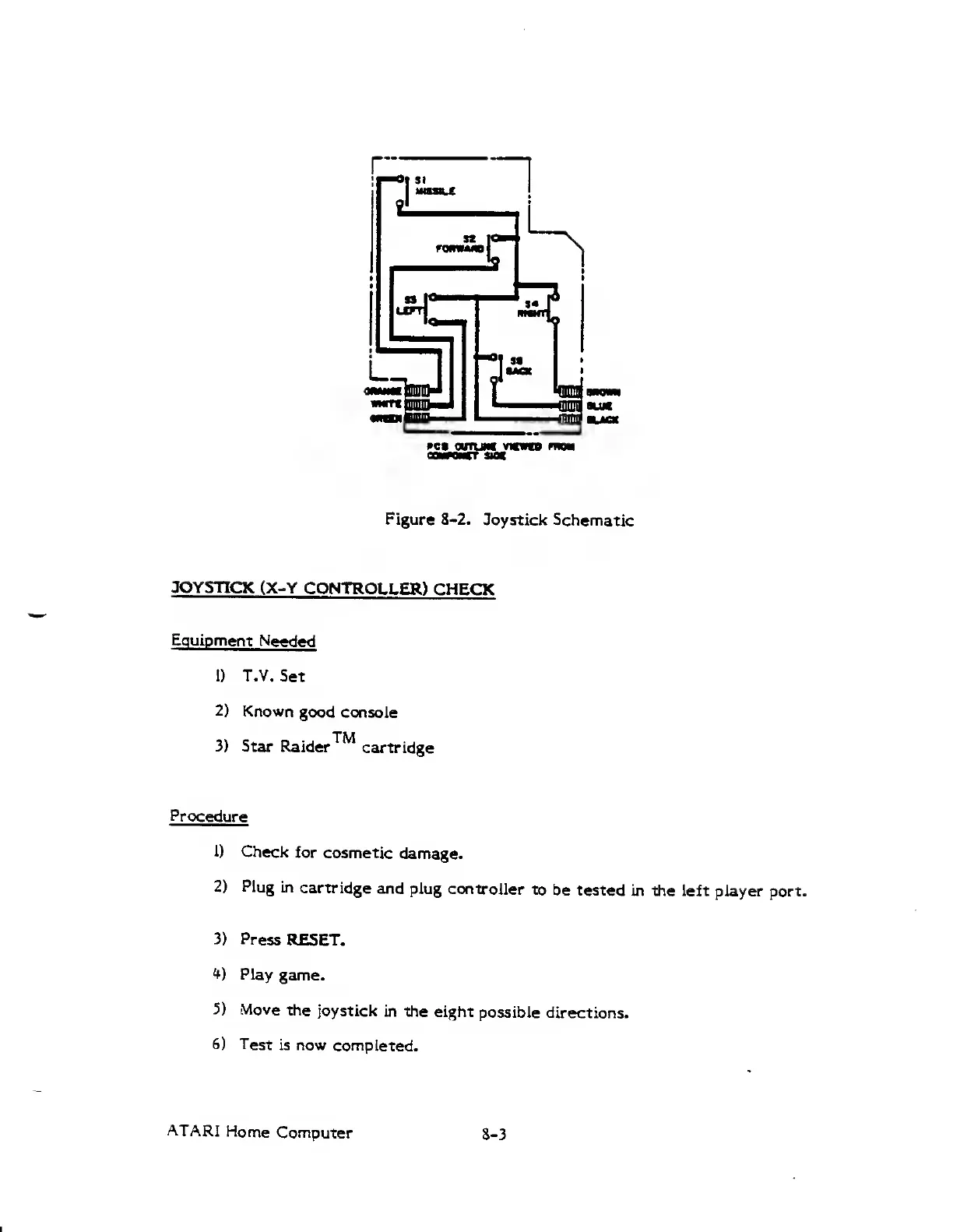

Figure
8-2.
Joystick
Schematic
JOYSTICK
(X-Y
CONTROLLER)
CHECK
Equipment
Needed
1)
T.V.
Set
2) Known
good console
3) Star Raider
cartridge
Procedure
1) Check
for
cosmetic
damage-
2)
Plug
in
cartridge
and
piug controller
to
be tested
in the left
player port.
3) Press
RESET.
^) Play
game.
5) Move
the
joystick in
the
eight
possible
directions.
6) Test
is now
completed.
ATARI
Home
Computer
S-3
