Atari 800 Field Service Manual

* • *
NOTE
* *
»
Once
you have
isoJated the
problem to either
the RAM,
ROM,
or
CPU
boards, clean the board
edge connectors
and retest the boards.
The SALT
11 cartridge
takes you through the
next phase of
tests. Use the SALT II
cartridge
to perform
the following
tests.
SALT
n Menu

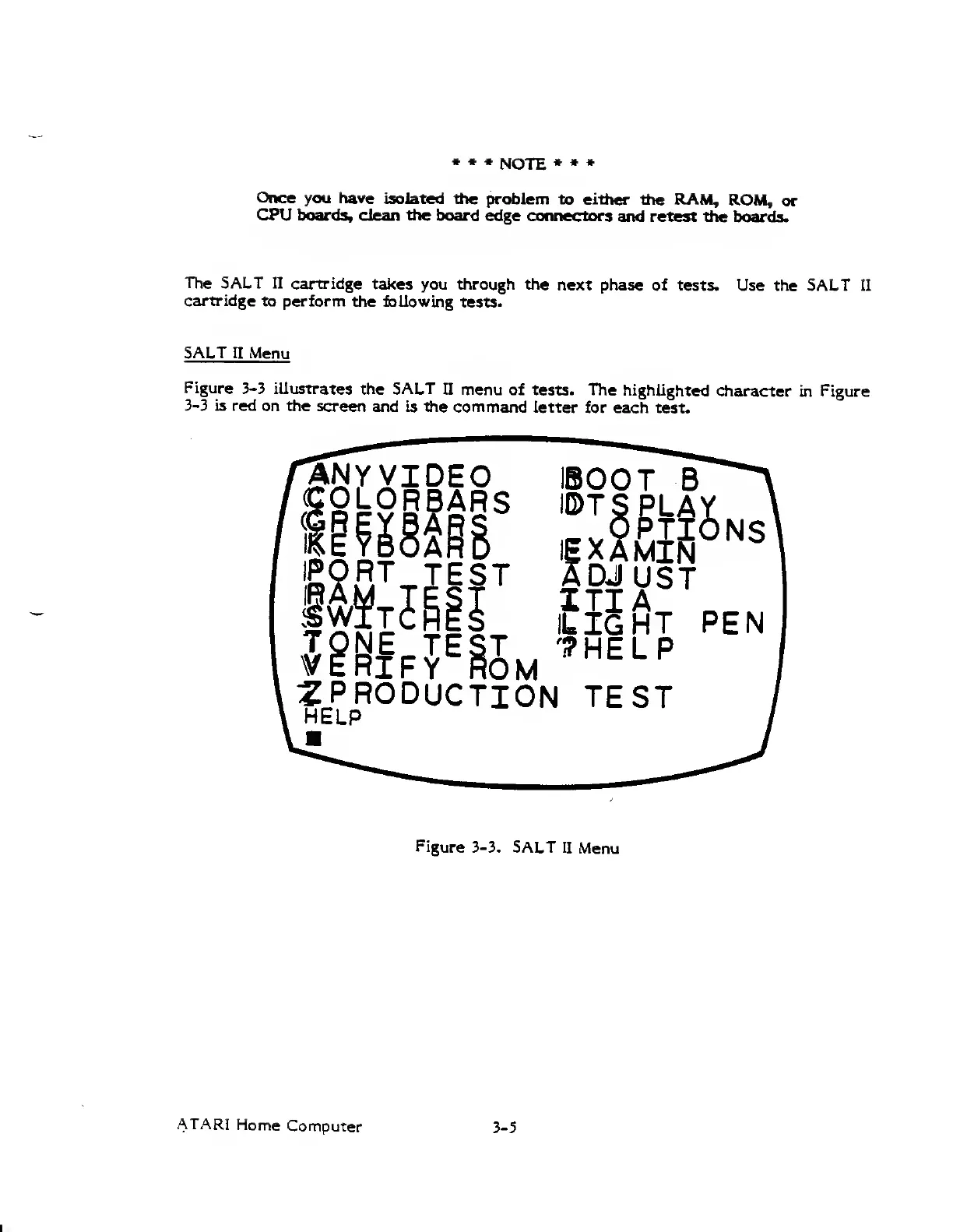

Figure 3-3
illustrates
the
SALT
II
menu of tests. The
highlighted
character
in
Figure
3-3
is red
on the screen
and is the command
letter
for each test.
ANYV
COLO
Keyb
IPORT
mi
mi
2
PRO
HELP
IDEO
RBARS
TEST
IBOOT
B
IDT
SPLAY
LIGHT
PEN
?HELP
DUCTION
TEST
Figure 3-3.
SALT II
Menu
ATARI
Home
Computer
3-5

Atari 800 Specifications

General

Processor	MOS Technology 6502
Processor Speed	1.79 MHz
ROM	10 KB
Graphics	ANTIC and GTIA chips
Release Year	1979
Display Resolution	up to 320 x 192
Colors	128 colors
Sound	4 channels
Storage	Cartridge, cassette, floppy disk
Ports	Cartridge, serial, monitor
Operating System	Atari OS
