Atari 800

Lift
the motherboard
off the lower
shield.
Remove
the plastic
cartridge
guide
by
unhooking
the four latches
from
the
bottom
side of the motherboard.
cAimiooe
suioe
aOTTQM
SHIGLO

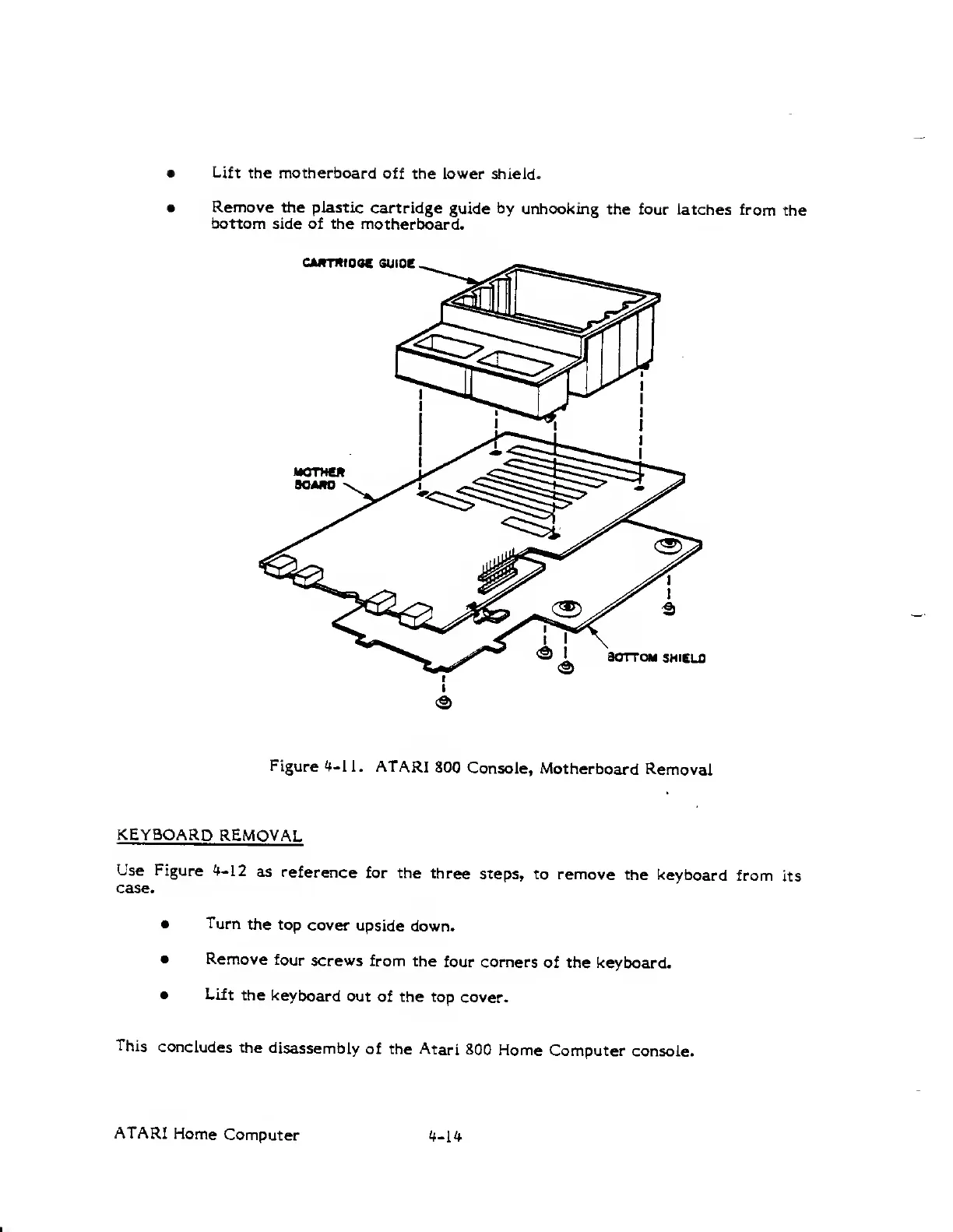

Figure ^-11.
ATARI
SOO
Console,
Motherboard
Removal
KEYBOARD
REMOVAL
Use
Figure
*-l2
as
reference
for the
three
steps, to remove
the
keyboard
from
its
case.
•
Turn
the top
cover
upside
down.
•
Remove
four
screws from
the
four corners
of the keyboard.
•
Lift
the
keyboard
out
of the top
cover.
This
concludes
the
disassembly
of the
Atari 800
Home
Computer
console.
