Atari 800 Field Service Manual

TOP coven

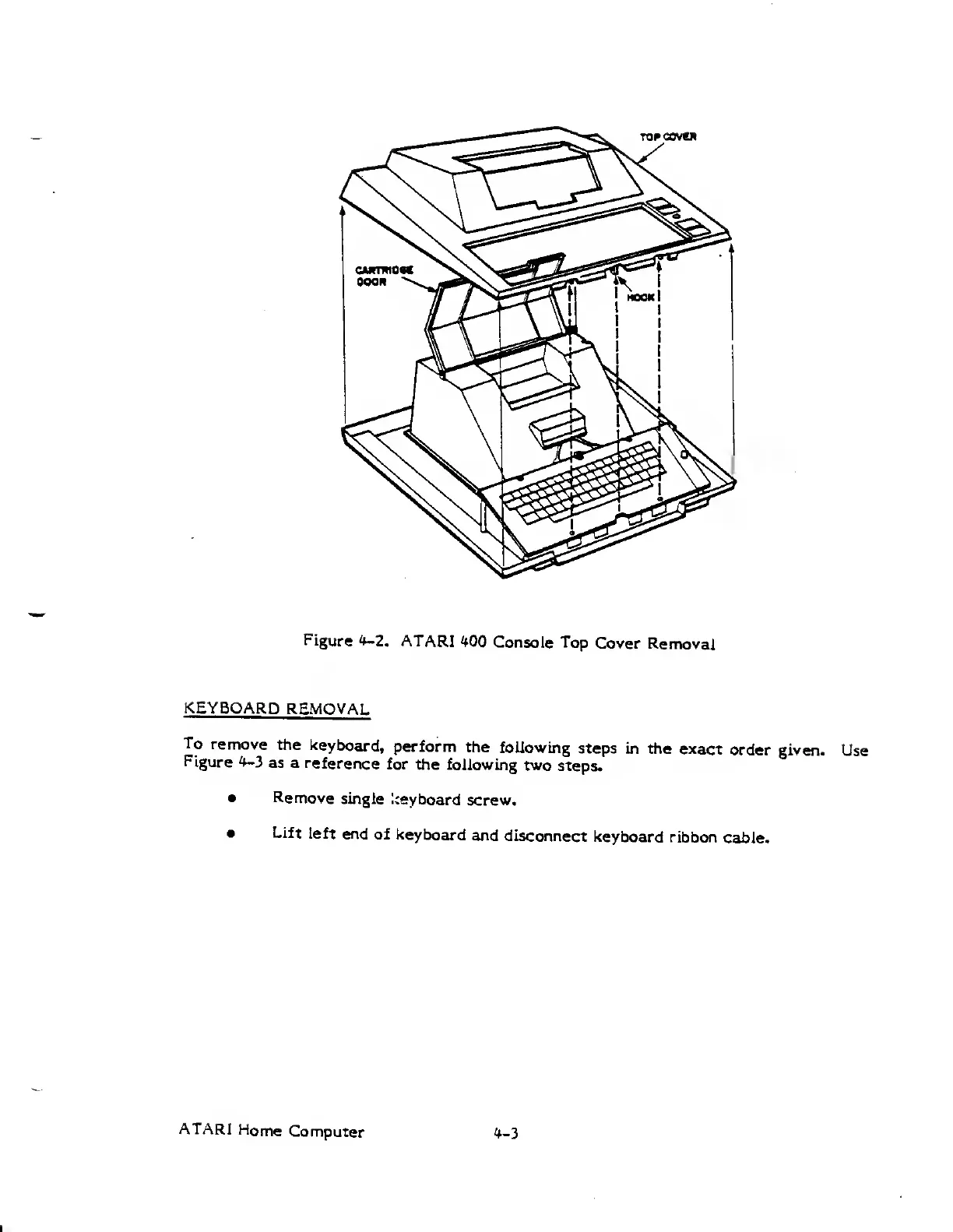

Figure *-2.
ATARI
WO
Console
Top
Cover
Removal
KEYBOARD
REMOVAL
To
remove
the
keyboard,
perform
the
following
steps in
the
exact
order given.
Use
Figure
^3 as a
reference
for
the following
two
steps,
•
Remove
single
Iceyboard
screw,
•
Lift
left
end of
keyboard
and disconnect
keyboard ribbon
cable.
ATARI
Home
Computer
^^-3

Atari 800 Specifications

General

Processor	MOS Technology 6502
Processor Speed	1.79 MHz
ROM	10 KB
Graphics	ANTIC and GTIA chips
Release Year	1979
Display Resolution	up to 320 x 192
Colors	128 colors
Sound	4 channels
Storage	Cartridge, cassette, floppy disk
Ports	Cartridge, serial, monitor
Operating System	Atari OS
