BOTTOM
COVER

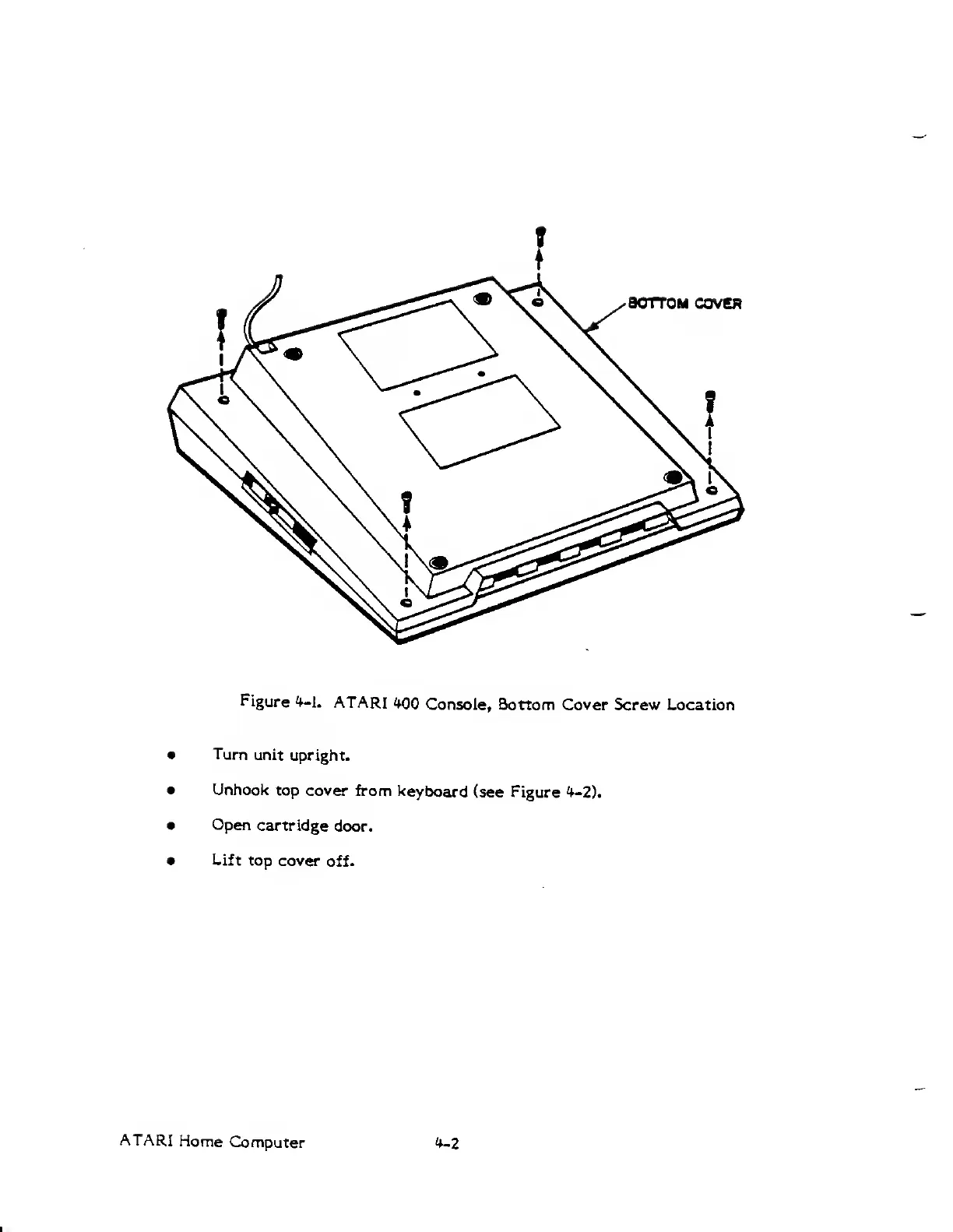

Figure
*-l. ATARI £*00
Console, Bottom Cover
Screw Location
Turn
unit
upright.
Unhook
top cover
from
keyboard
(see Figure f-2).
Open
cartridge
door.
Lift
top
cover
off.
ATARI
Home
Computer ^-2
