Atari 800

SECTION
2
Sa.KSCREEN
AND
SCHEMATICS

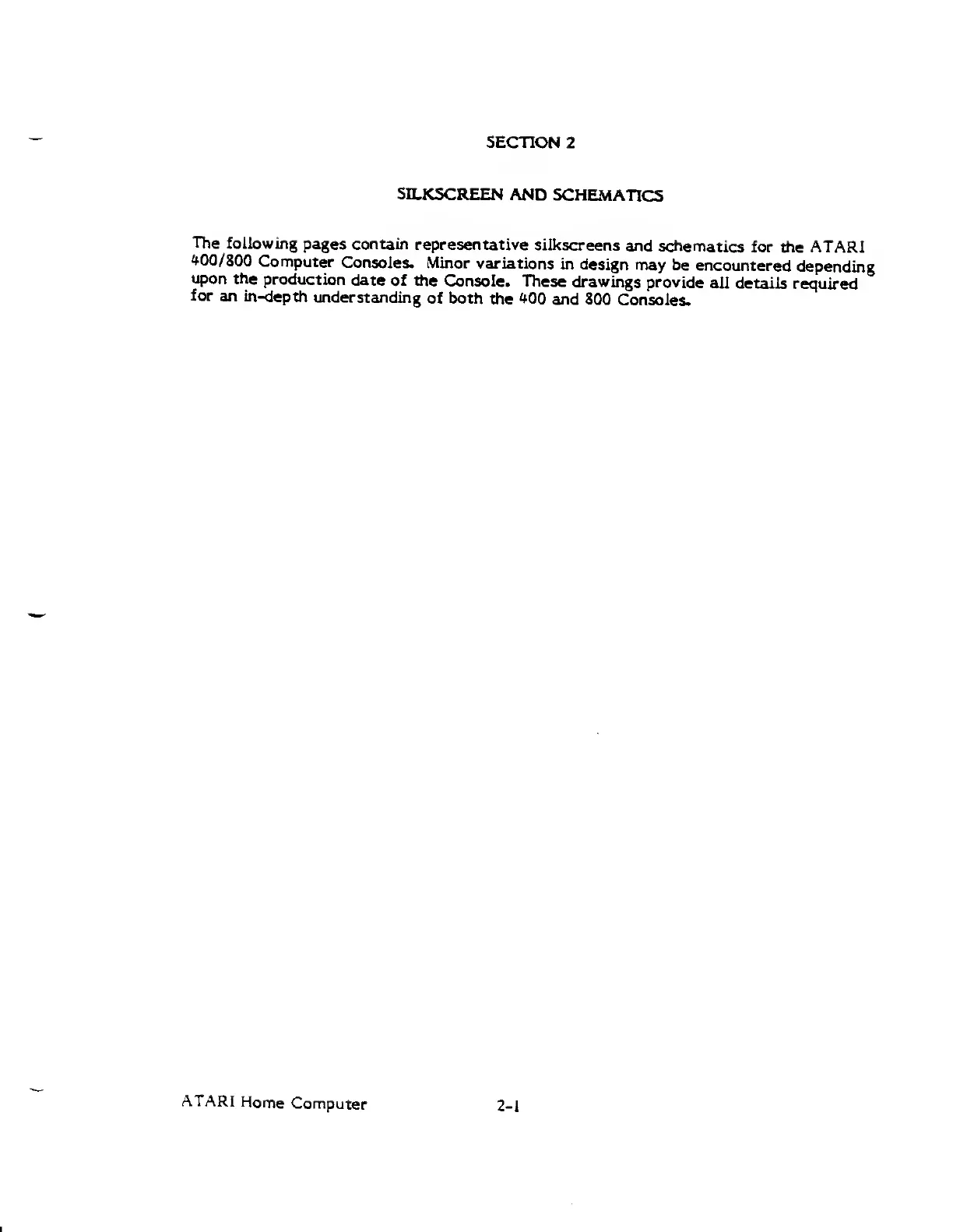

The
following
pages contain
representative
silkscreens
and schematics
for
the
ATARI
*00/800
Computer
Consoles.
Minor
variations
in design
may be
encountered
depending
upon
the
production
date of the
Console. These
drawings provide
all details
required
for
an in-depth
understanding
of both
the
*00
and
800
Consoles-
ATARI
Home
Computer
2-i
