Atari 800

BOTTOM COVQI

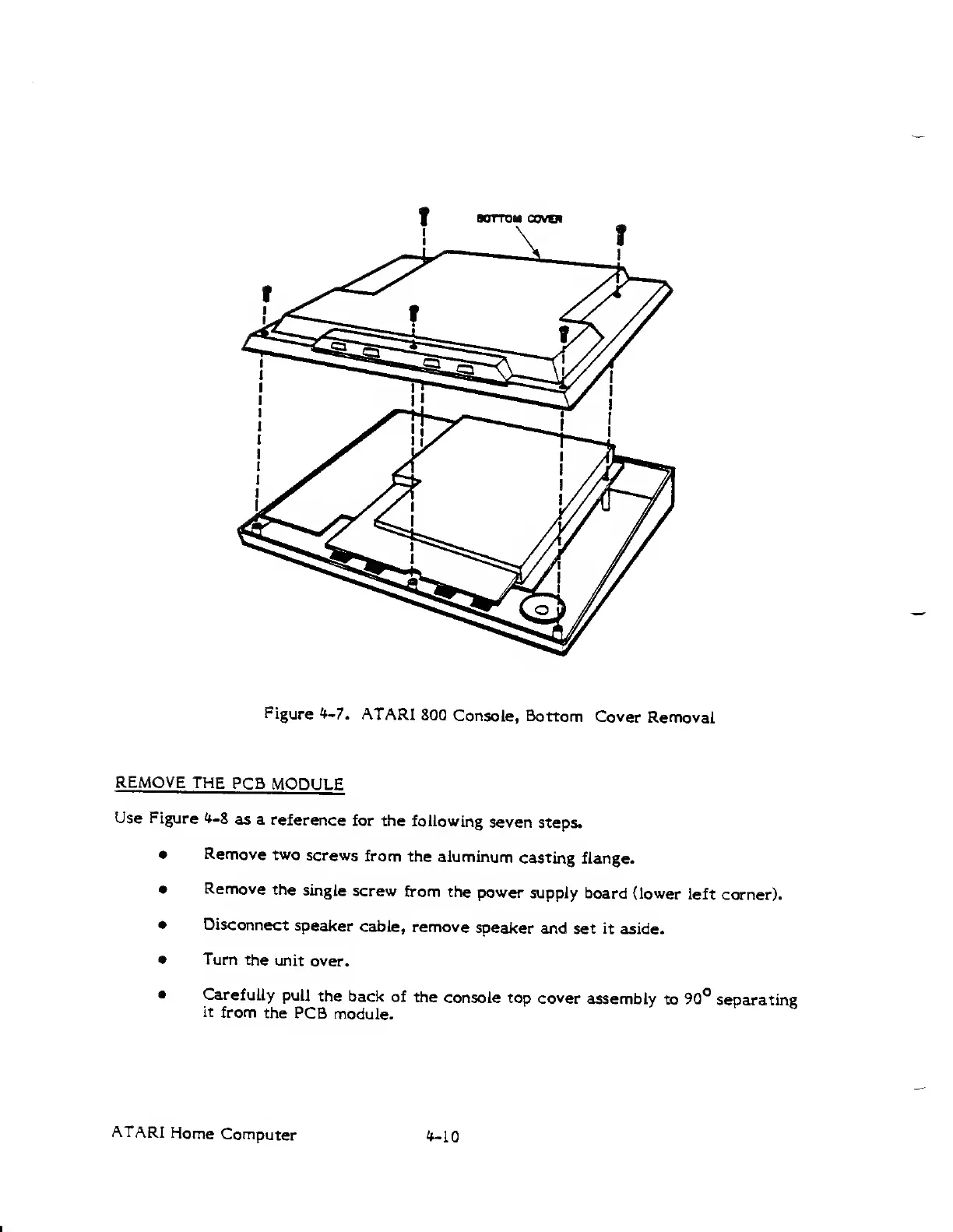

Figure 4-7.
ATARI
800
Console,
Bottom
Cover
Removal
REMOVE
THE
PCB
MODULE
Use
Figure *-8
as a
reference
for the
following
seven
steps.
Remove
two
screws
from
the
aluminum
casting
flange.
Remove
the
single
screw
from the
power
supply board
(lower
left
corner).
Disconnect
speaker
cable,
remove
speaker
and set it
aside.
Turn
the
unit
over.
Carefully
pull
the back
of
the
console top cover
assembly
to
90°
separating
it
from
the PCB
module.
