Atari 800

ALUMINUM
CASniM

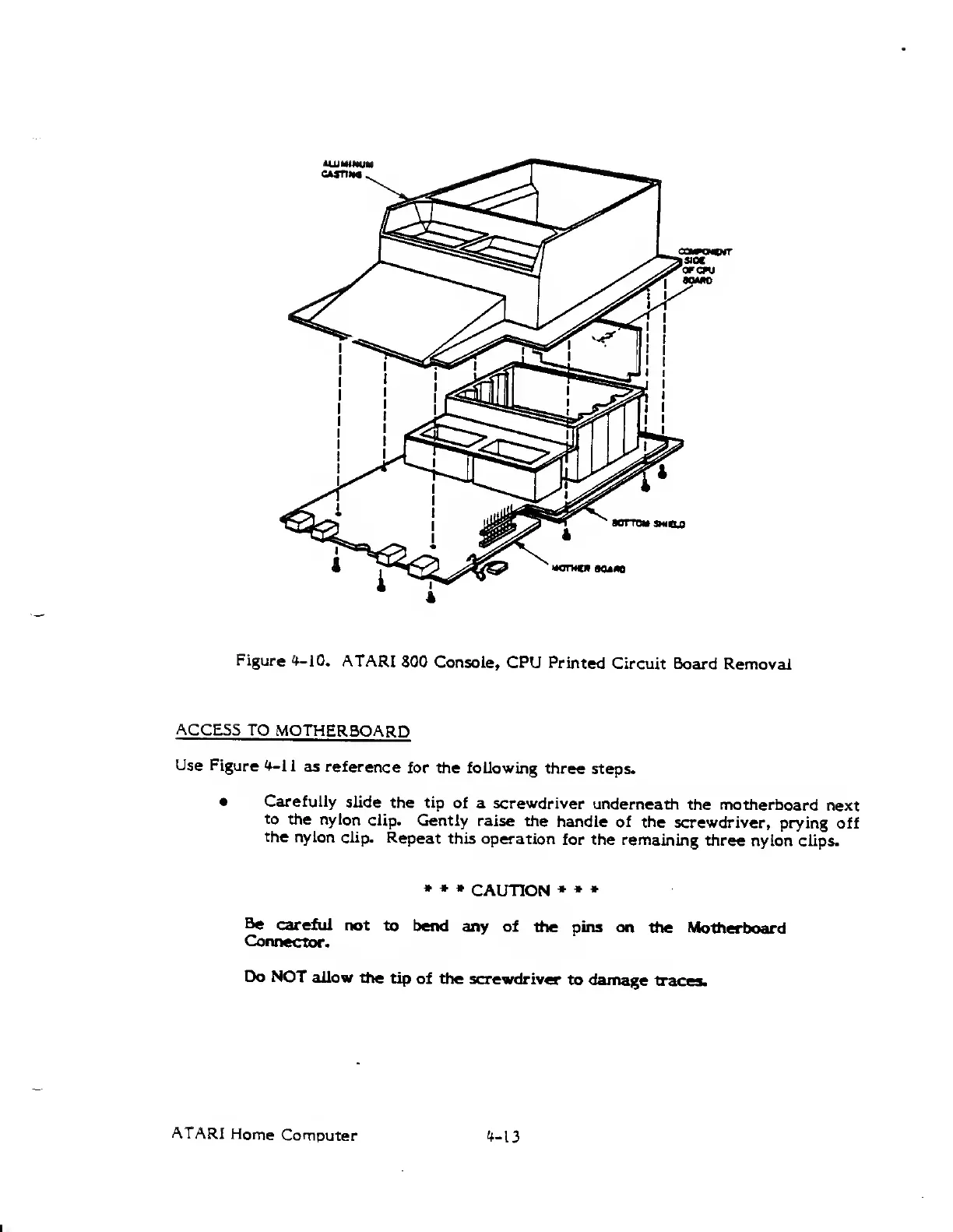

Figure *-lO.
ATARI
800
Console, CPU
Printed
Circuit Board
Removal
ACCESS
TO
MOTHERBOARD
Use
Figure
^11
as reference
for the following
three
steps.
•
Carefully
slide
the tip
of a screwdriver
underneath
the motherboard
next
to
the nylon
clip.
Gently raise
the
handle of the
screwdriver,
prying
off
the
nylon
clip.
Repeat
this
operation
for the remaining
three
nylon clips.
» » *
CAUTION
• »
Be
care&l
not to
bend
any of the
pins on
the
Motherboard
Connector.
Do NOT
allow the
tip
of the
screwdriver
to damage
traces.
ATARI
Home
Computer
i*'{3
