Atari 800

CARTRIDGE
DOOR
ASSEMBLY

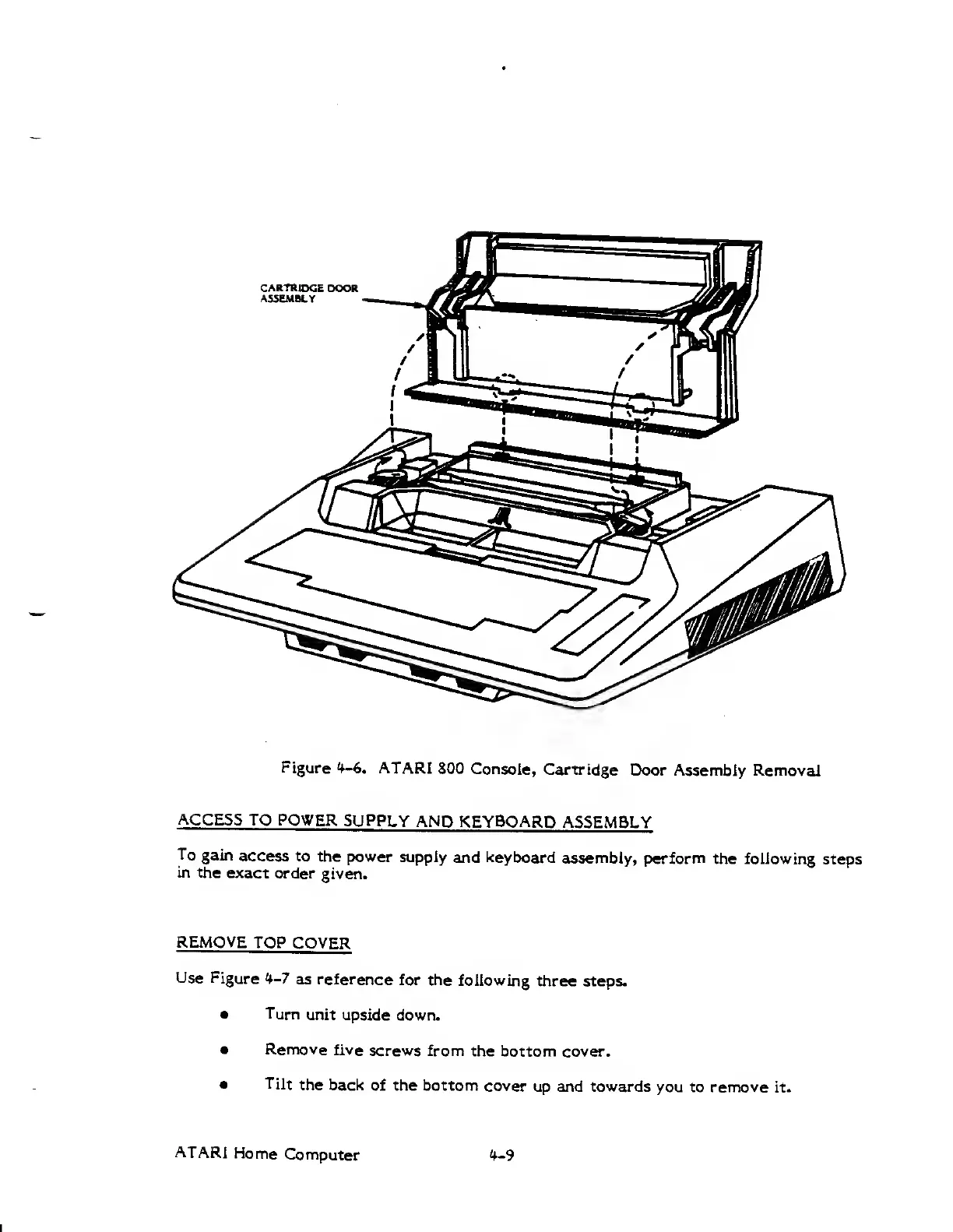

Figure
t^-6.
ATARI
800 Console,
Cartridge
Door Assembly
Removal
ACCESS TO
POWER
SUPPLY
AND KEYBOARD
ASSEMBLY
To
gain
access to
the power
supply
and keyboard
assembly, perform
the following
steps
in the
exact
order
given.
REMOVE
TOP
COVER
Use
Figure *-7
as reference
for the
following
three steps.
• Turn
unit upside
down.
•
Remove
five
screws from
the bottom
cover.
•
Tilt
the back
of the bottom
cover
up and towards
you to remove
it.
ATARI
Home
Computer
^^-9
