ATEQ D6 Series Quick Start Guide

QSG_D6 CLASS_439.00_EN_01 /_2020-05-04
24/38

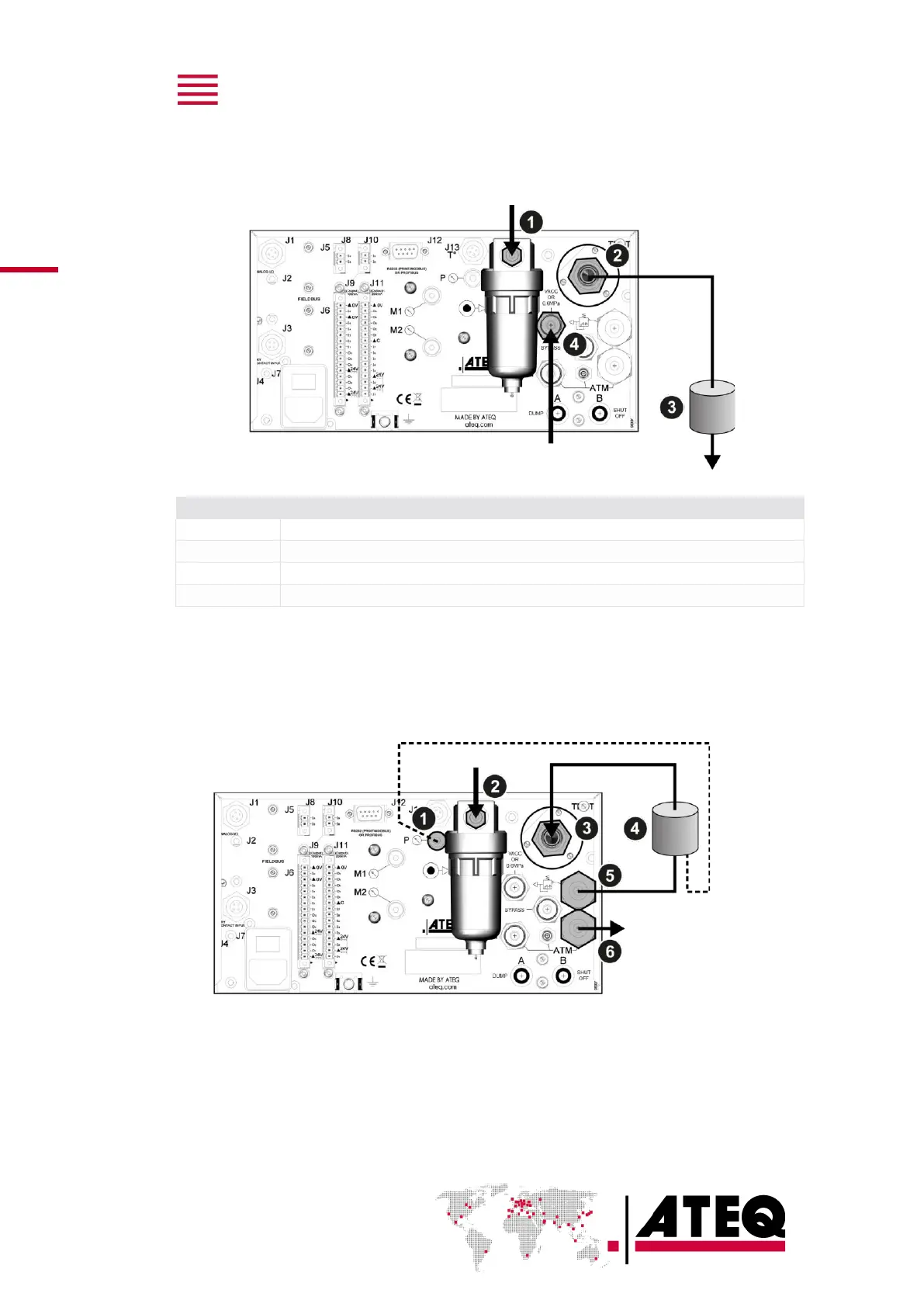

Direct mode - 1 MPa range
This configuration is used for direct mode at high pressure range.
Indirect mode - Internal pressure reading on regulator
output - until 0.5 MPa
Use this configuration for indirect mode at medium pressure range.
Connection
Option / description
Air supply to 1
Connection of the regulator air supply to the filter input (1.2 MPa)
Air supply to 4
Connection of the air supply to the valve pilot input (0.6 MPa)
2 to 3
Connection of the test output to the part under test (direct mode option)
3 to ATM
Connection of the part under test to the atmosphere
