ATEQ D6 Series Quick Start Guide

QSG_D6 CLASS_439.00_EN_01 /_2020-05-04
25/38
Connections
Connection
Option / description
Air supply to 2
Connection of the air supply to the filter input (0.6 MPa)
5 to 4
Connection of the regulator output to the part under test
4 to 3
Connection of the part to the test input (indirect mode option)
4 to 1
Connection of the part to test (regulator side) to P connector (external back
pressure option)
6 to ATM
Connector left free to the atmosphere

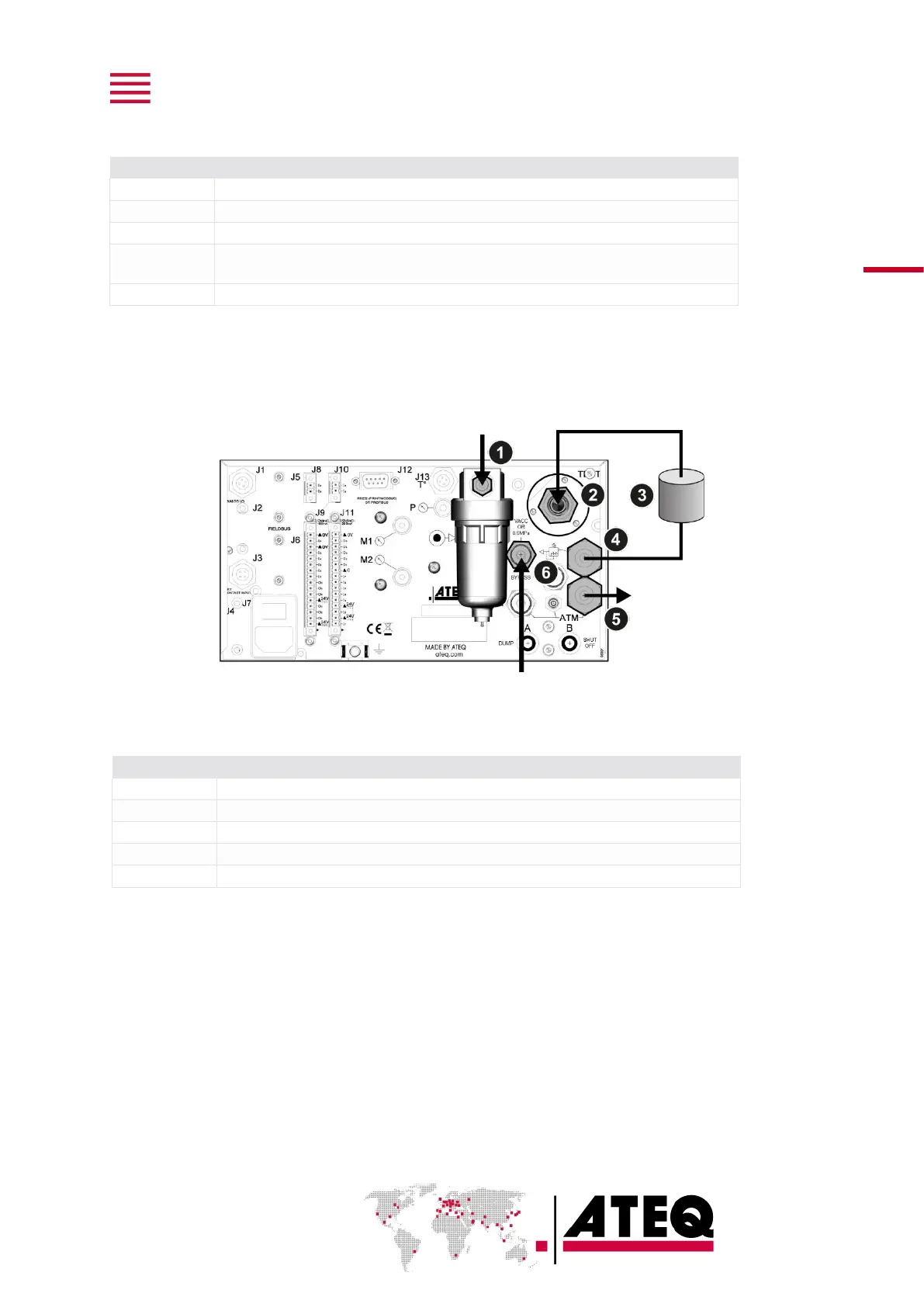

Indirect mode - 1 MPa range
This configuration is used for indirect mode at high pressure range.
Connections
Connection
Option / description
Air supply to 1
Connection of the regulator air supply to the filter input (1.2 MPa)
4 to 3
Connection of the regulator output to the part under test
3 to 2
Connection of the part to the test input (indirect mode option)
5 to ATM
Connector left free to the atmosphere
Air supply to 6
Connection of the air supply to the valves pilot input (0.6 MPa)
