ATEQ D6 Series Quick Start Guide

QSG_D6 CLASS_439.00_EN_01 /_2020-05-04
35/38
Label
Function
Description
PR:SEQUENCE
Sequencing
Allowed program automatic sequencing
PRE-FILL
Pre-fill types
Special filling methods
PRESS. AZ
Pressure auto zero
Define if Pressure auto zero is done before, after
the cycle or on demand (not done automatically)
PRESS. CORR.
Pressure correction
Calculate flow measurement at a specific
pressure value, whatever the real test pressure is
REG. MODE
Regulator mode
Define the method to control the electronic
pressure / flow regulator
REWORK LIMIT
Rework limits
Additional levels for specific reworkable parts
SIGN
Sign
Return opposite result
STAMPING
Stamp
Pneumatic or electric output to identify the part
STD CONDITIONS
Standard conditions
Calculate measured flow in other ATM pressure
and temperature condition (displays the unit with
an *)
UNITS
Units
Access to International System or American or
Custom Units
VALVE CODES
Valve codes
Available outputs for external automatism

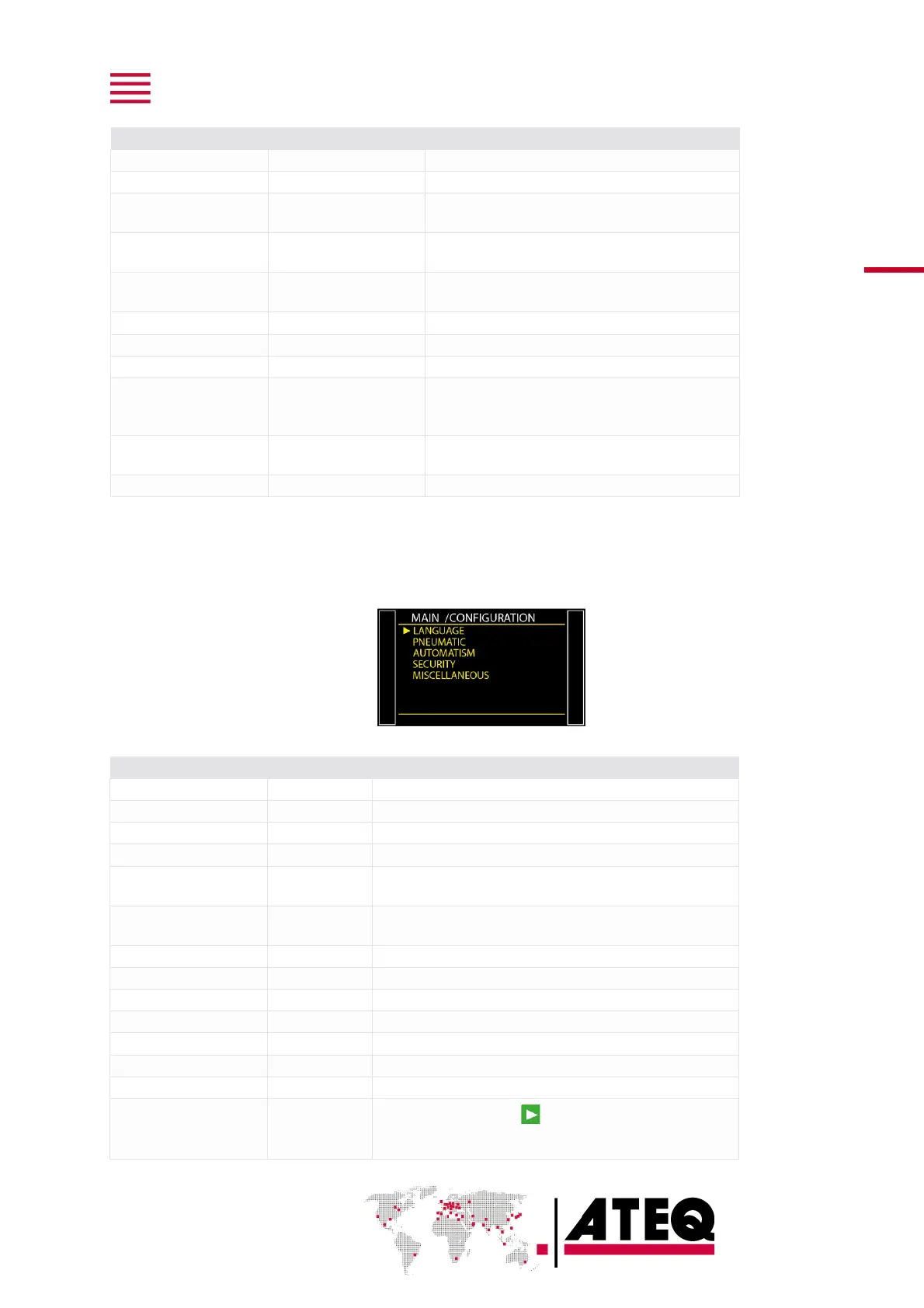

CONFIGURATION menu
Use this menu to configure your ATEQ device.
Label
Function
Description
LANGUAGE
Language
Selection of the language displayed on the screen
PNEUMATIC
Pneumatics
Configuration of the pneumatics functions of the device
> READY STATUS
-
Out of cycle electronic regulator instruction choice
> Press. UNIT
-
Pressure unit by default for the new programs
AUTOMATISM
Automatism
Configuration of the different communications between
the device and its environment
> RS232
-
Configuration of the communication type on the RS232
port
> USB
-
Sending result frames to a PC
> Date & Time
-
Setup of the built-in clock
> OUTPUTS CONFIG.
-
Configuration of the programmable outputs
> INPUTS CONFIG.
-
Configuration of the programmable inputs
> CODE READER
-
Bar code reader configuration
SECURITY
Security
Security functions
> ACCESS
-
Parameters access mode (key or password)
> START OFF
-
Deactivation of the Start on the instrument front panel.
Programs can only be started from the instrument relay
board.
