ATEQ F600 User Manual

QSG_F600.415.00_EN_01 / 2019-04-16
14 / 38

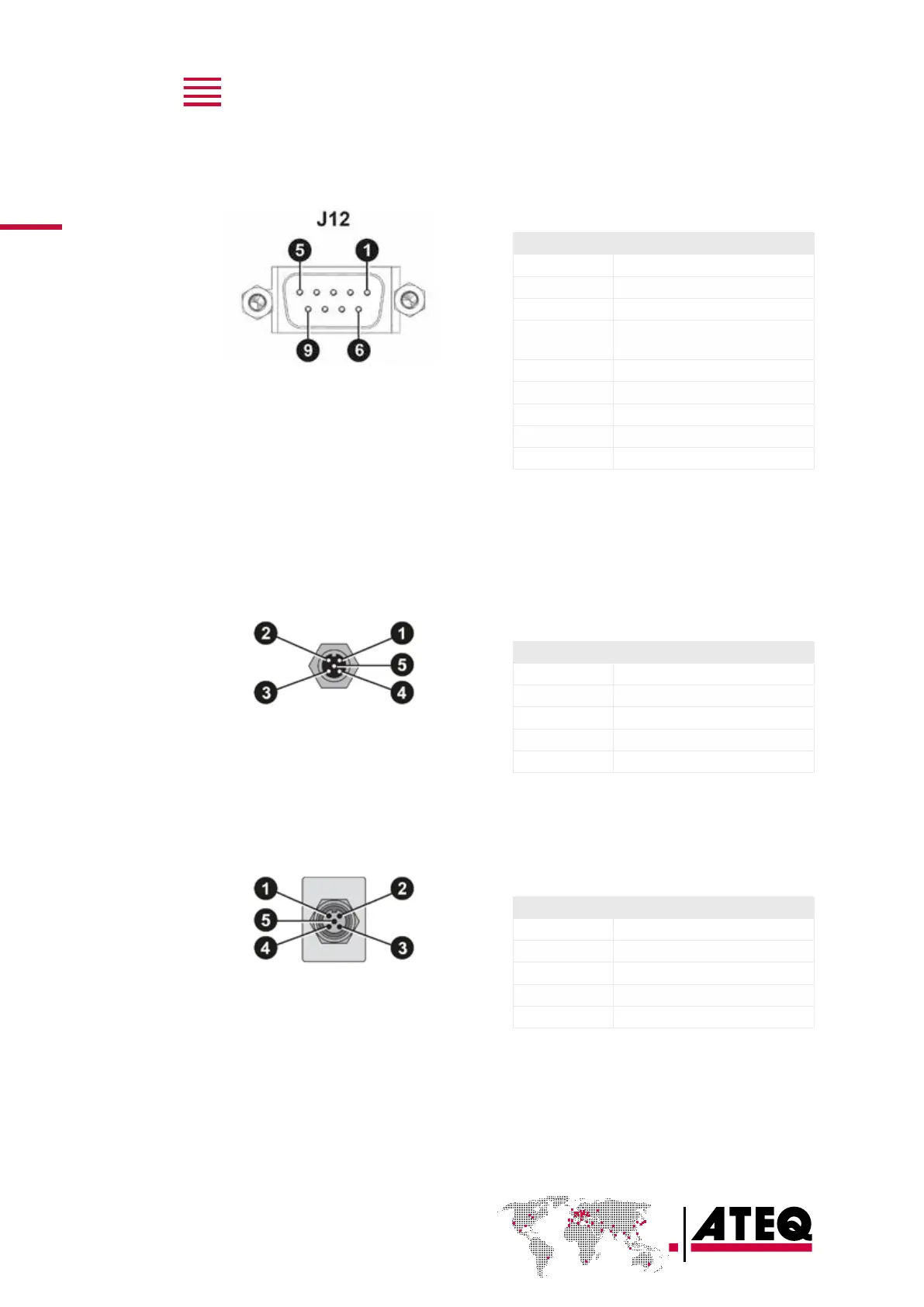

RS232 - SubD 9 pins female connector (Profibus) option
Profibus: SubD 9 pins female connector.
Pin number Signal
1 PE (ground)
2 Not used
3 Data line A
4 CNTR - A (repeater control
signal)
5 DGND (logic ground)
6 VP (supply)
7 Not used
8 Data line B
9 Not used
Devicenet connectors (J5) (J6) (option)
M12 type connector - 5 pins male connector (J5) (Devicenet input)
For connection to others ATEQ devices.
Pin number Signal
1 Drain
2 V+
3 V-
4 CAN_H
5 CAN_L
M12 type connector - 5 pins female connector (J6) (Devicenet output)
For connection to others ATEQ devices.
Pin number Signal
1 Drain
2 V+
3 V-
4 CAN_H
5 CAN_L
