ATEQ F600 User Manual

QSG_F600.415.00_EN_01 / 2019-04-16
23 / 38

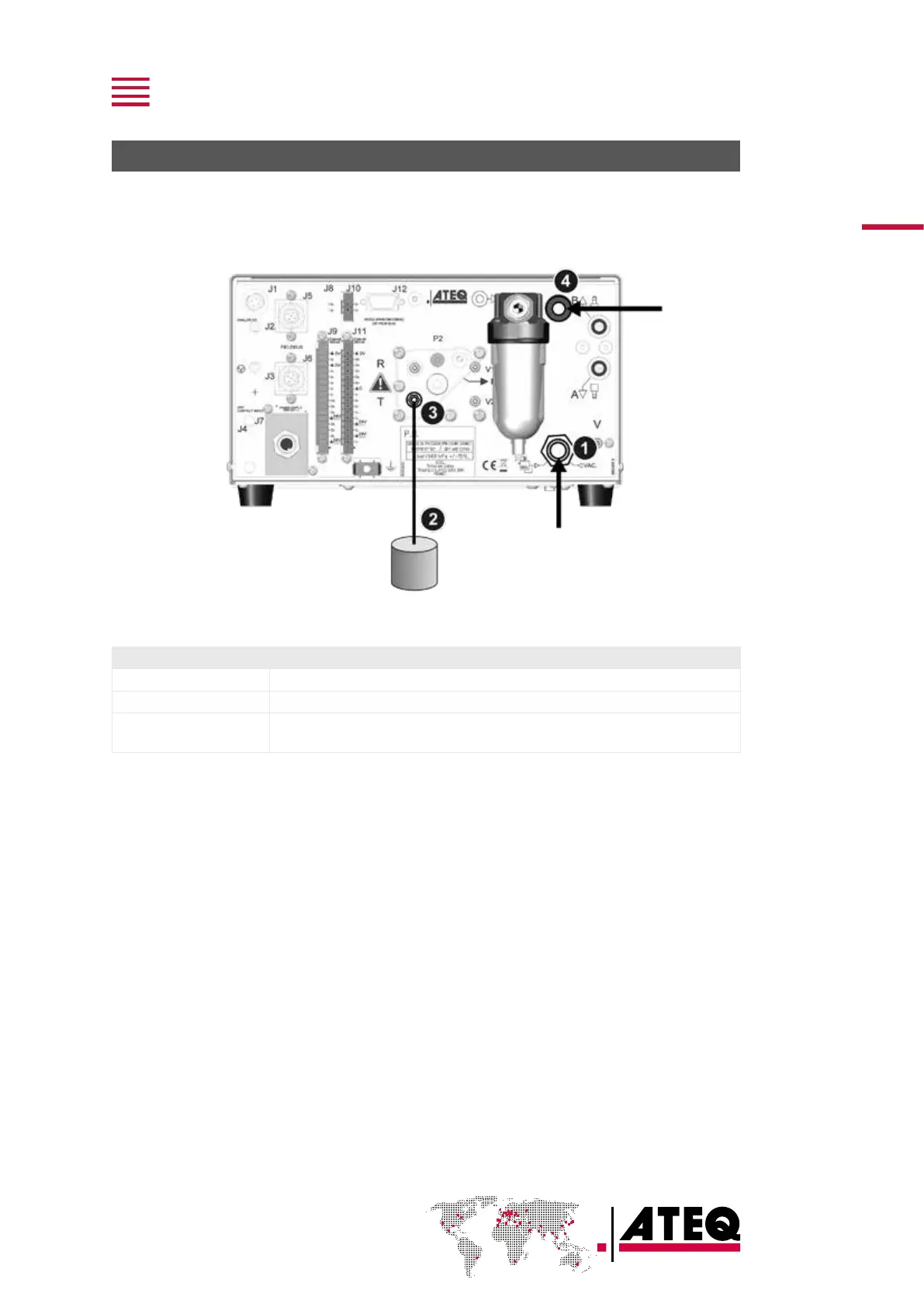

PNEUMATICS CONFIGURATION
Direct mode - Vacuum
Connections
Connection Option / description
Vacuum to 1
Connection to the vacuum (option)
3 to2
Connection of the test output to the part under test
Air supply to 4
Connection of the air supply (0.6MPa (87PSI)) for pneumatic output
option only (see Pneumatic output 0.6MPa (87PSI) (option))
