QSG_F600.415.00_EN_01 / 2019-04-16
16 / 38

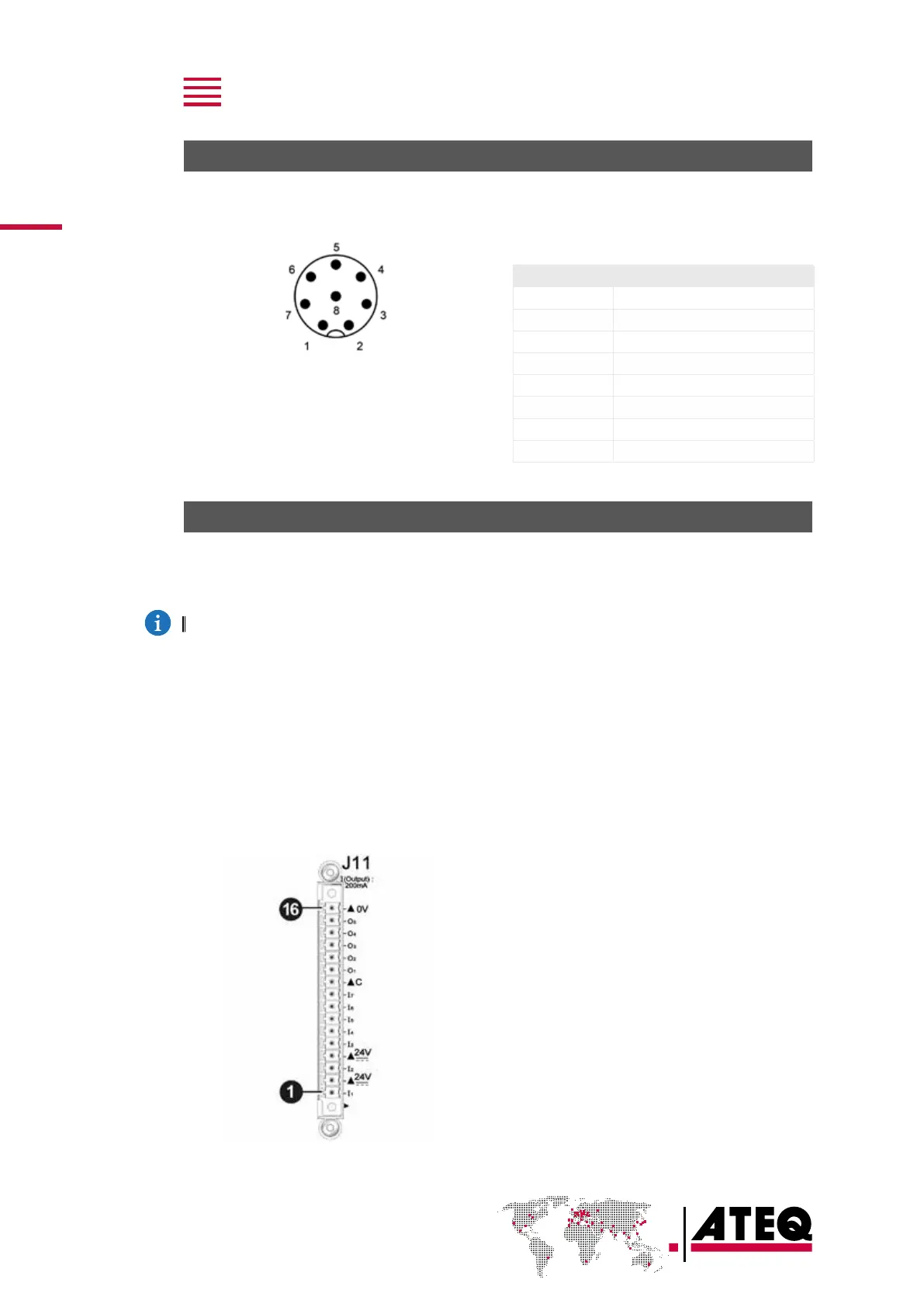

ANALOG OUTPUTS (OPTION)
M12 type connector - 8 pins female connector (J1)
Pin number Signal
1 Ground Pressure
2 0 - 10 V DC Pressure
3 Ground Pressure (Diff)
4 0 - 10 V DC Pressure (Diff)
5 Signal contact event
6 Ground contact event
7 Other options
8 Other options
DIGITAL INPUTS/OUTPUTS
The 24V DC power supply for the digital inputs can be provided by 2 means:
— The internal power supply of the device (0.3A max)
— An external power supply provided by the customer.
Inputs default mode is PNP. NPN mode is available on request.
Relay board connector (J11)(option)
Characteristics
— Inputs
• Activation: + 24 V DC.
— Outputs
• Dry contacts
• 60 V AC / DC max - 200 mA max.
