QSG_F600.415.00_EN_01 / 2019-04-16
7
/
38
PRINCIPLE OF A CY
CLE

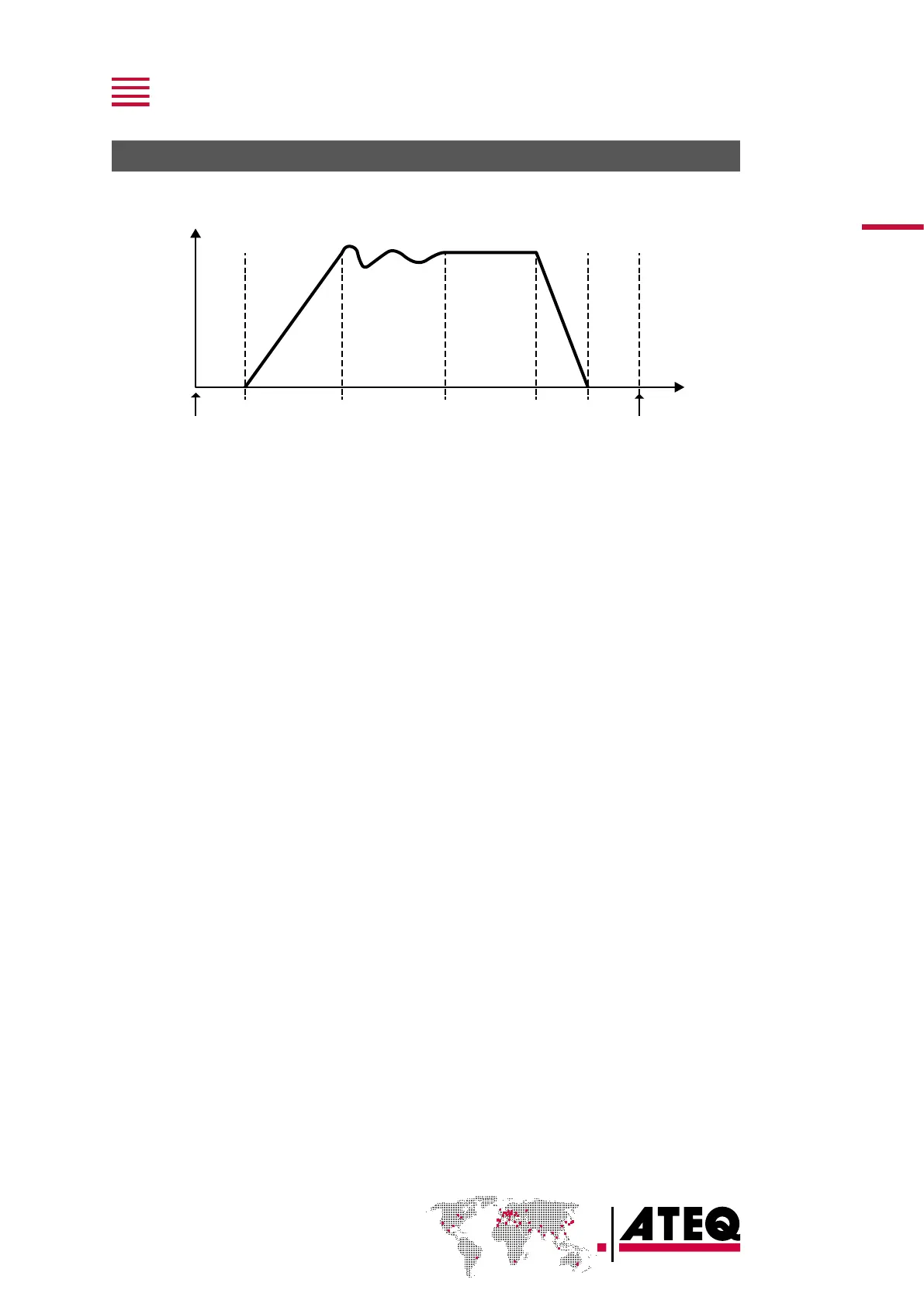

The measurement cycle is made of 4 main phases: fill, stabilization, test, dumping.
Pr
essure
(0)
(1)
(2)
(4)
Tim
e
Cycle start
Cycle end
(3)
0
W
aiting phase
1
Fill phase
2
Stabilization phase
3
T
est
4
Dumping
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
Safety Advisory / Warranty
4
Good Practices and Safety Instructions
4
Air Quality Requirements
5
Preamble
6
ATEQ F600, a Universal Leak Tester
6
Leak Test
6
Principle of a Cycle
7
Your ATEQ F600
8
Front Panel
8
Connectors on the Back Panel (with All Options)
9
Power Supply Connectors
11
Digital Links
13
Analog Outputs (Option)
16
Digital Inputs/Outputs
16
Pneumatic Connectors
20
Pneumatics Configuration
23
User Interface
25
Overview
25
Keys
25
Display
26
Starting up
28
Power up
28
Preparing a Program
28
Modifying a Parameter
29
Selecting a Program
30
Starting and Stopping Current Cycle
30
User Adjustments
31
Options of the Menus
31
Specifications
37
Characteristics
37
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ATEQ F600 and is the answer not in the manual?
Ask a question
