Direct mode
Maximum pressure: 1MPa (145PSI)

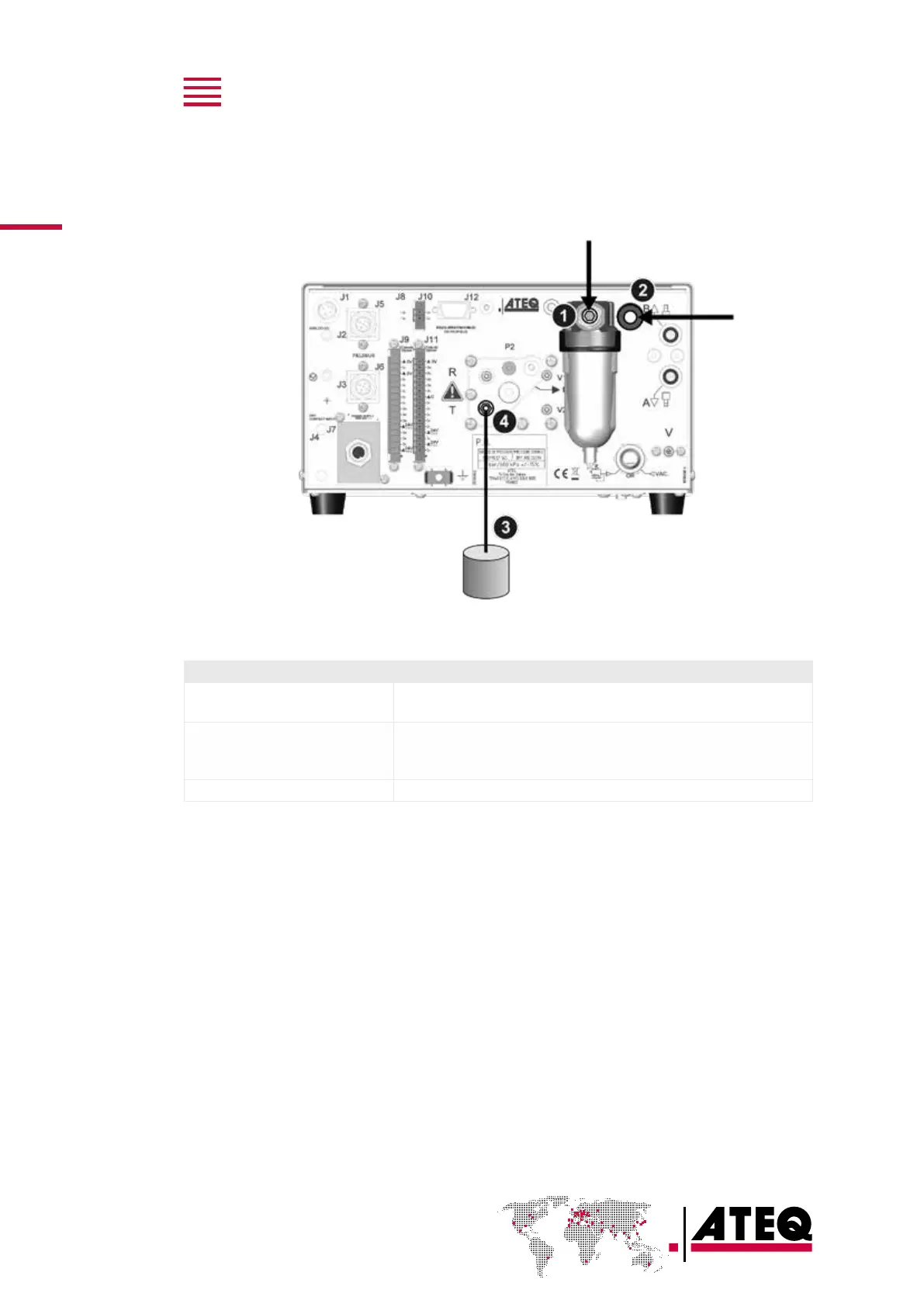

Connections
Connection Option / description
Regulator air supply to1
Connection of the regulator air supply to the filter input (1.2 MPa
(174PSI))
Air supply to 2
Connection of the air supply (0.6MPa (87PSI)) for pneumatic
output option only (see Pneumatic output 0.6MPa (87PSI)
(option))
4 to3
Connection of the test output to the part under test
