ATEQ F600 User Manual

QSG_F600.415.00_EN_01 / 2019-04-16
19 / 38

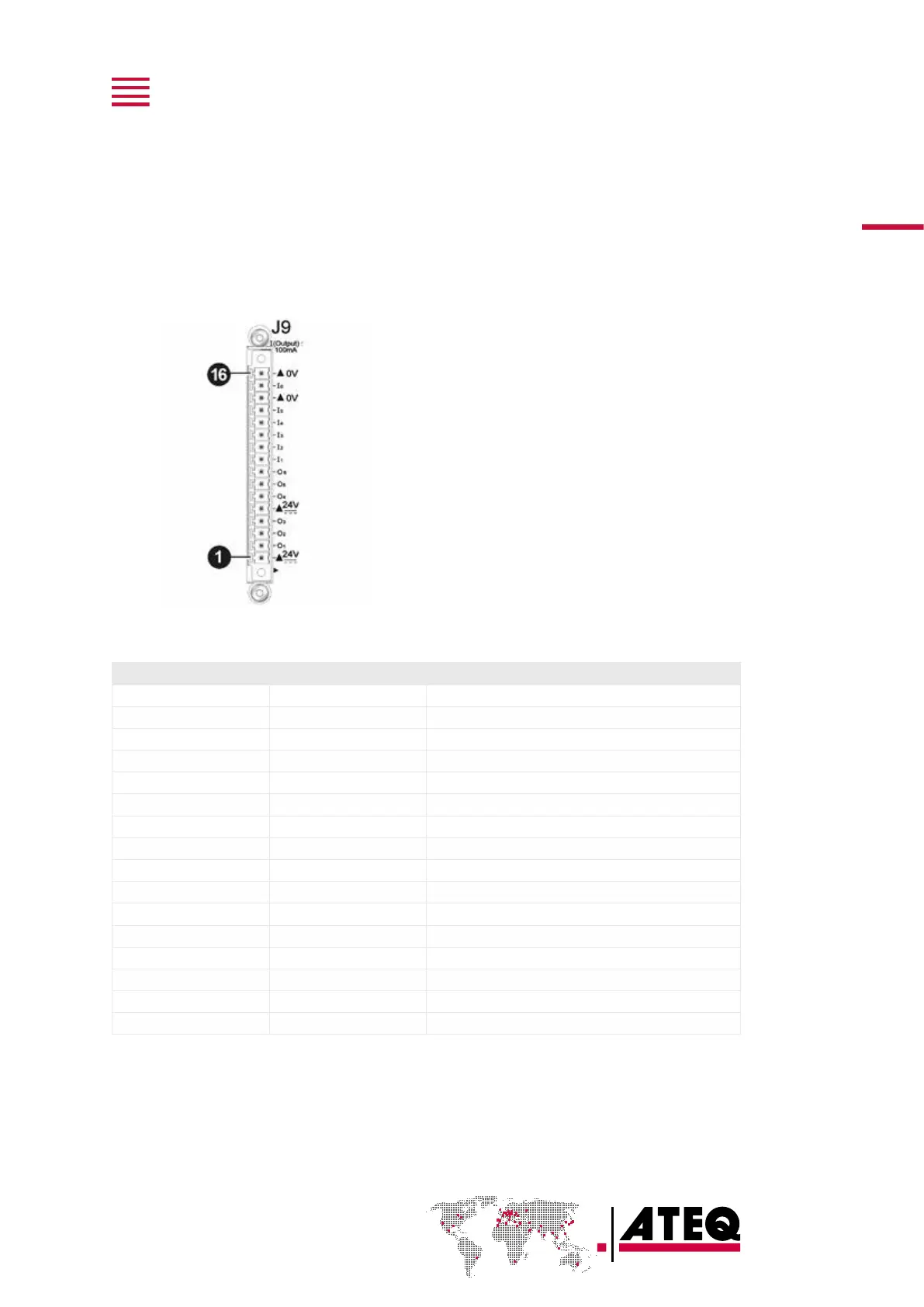

Valve codes and auxiliary outputs board connector (J9) (option)
Characteristics
— Outputs:
• 24 V DC - 100 mA max per output.
— Inputs:
• Activation: + 24 V DC.
Pin number Inputs / outputs Description
1 + 24 V DC Common (outputs 1, 2,3)
2 Output 1 Open collector
3 Output 2 Open collector
4 Output 3 Open collector
5 + 24 V DC Common (outputs 4, 5, 6)
6 Output 4 Open collector
7 Output 5 Open collector
8 Output 6 Open collector
9 Input 1 Programmable input
10 Input 2 Programmable input
11 Input 3 Programmable input
12 Input 4 Programmable input
13 Input 5 Programmable input
14 0 V Ground
15 Input 6 Programmable input
16 0 V Ground
