QSG_F600.415.00_EN_01 / 2019-04-16
21 / 38

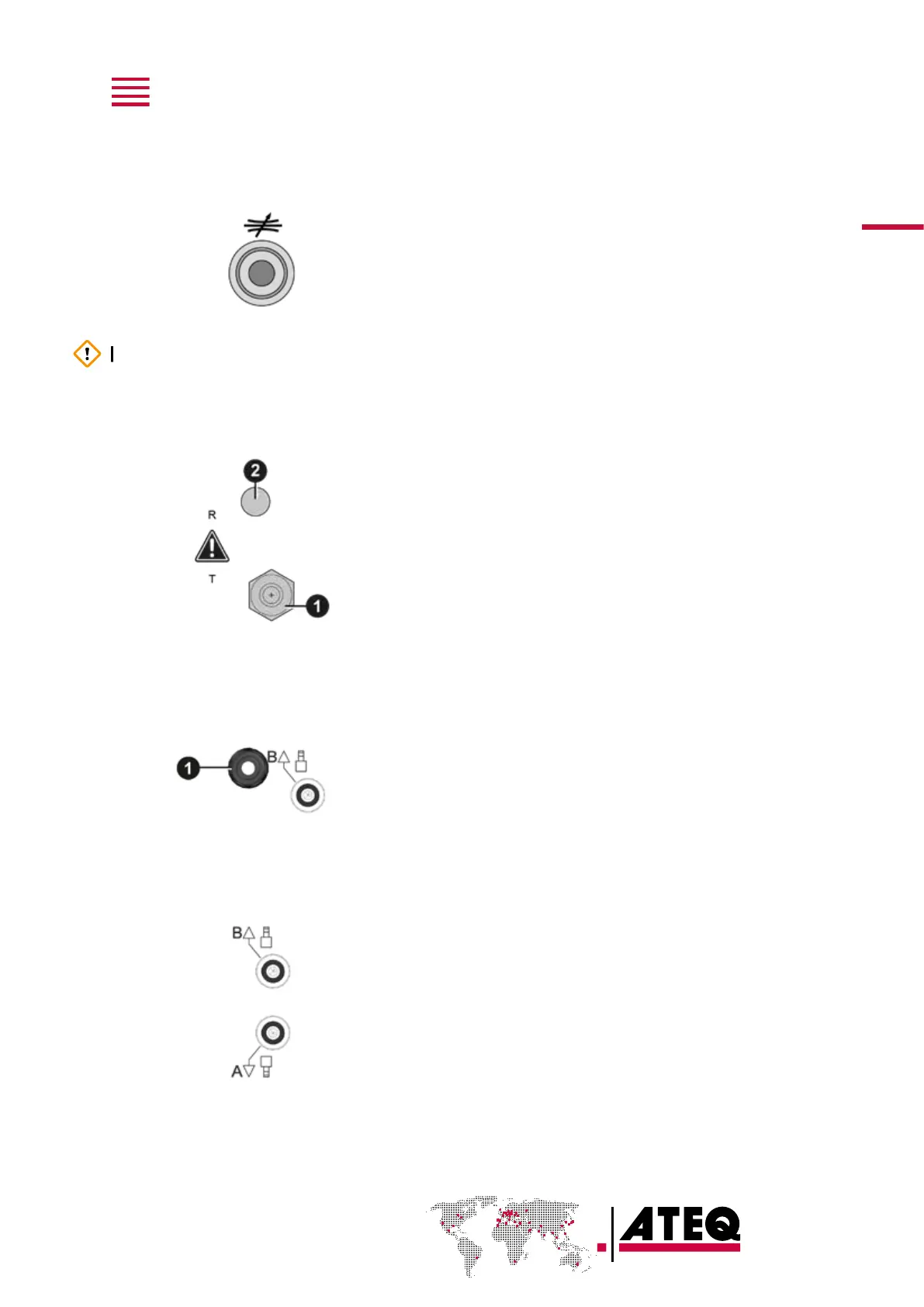

Quick connector (on front face) (option)
Use this function to check the calibration.
As this connector is part of the measurement circuit, all its connections must be air tight.
Test outputs
The output enables parts to be connected (test)
1 Test connector
2 Exhaust output
Metallic fitting available for test (1)
connector:
— 2.7/4 mm
— 3/5 mm
— 4/6 mm
— 6/8 mm
Other input
1 Pilot pressure input or test pressure
input (according configuration)
Pneumatic output 0.6MPa (87PSI) (option)
A and B: automatic connectors option. These
connectors are used to drive pneumatic
caps on the part under test.
