5. Color Control: Mainly used to control the color and density of printing, color management.
A：Density curve: The purpose is to control the amount of ink produced by each ink to linearize the level of
each ink. (Hint: In order to get the best print results, we will create a density curve for each combination of
different printheads, inks, and fabrics as much as possible. When replacing the printhead or using new ink, the

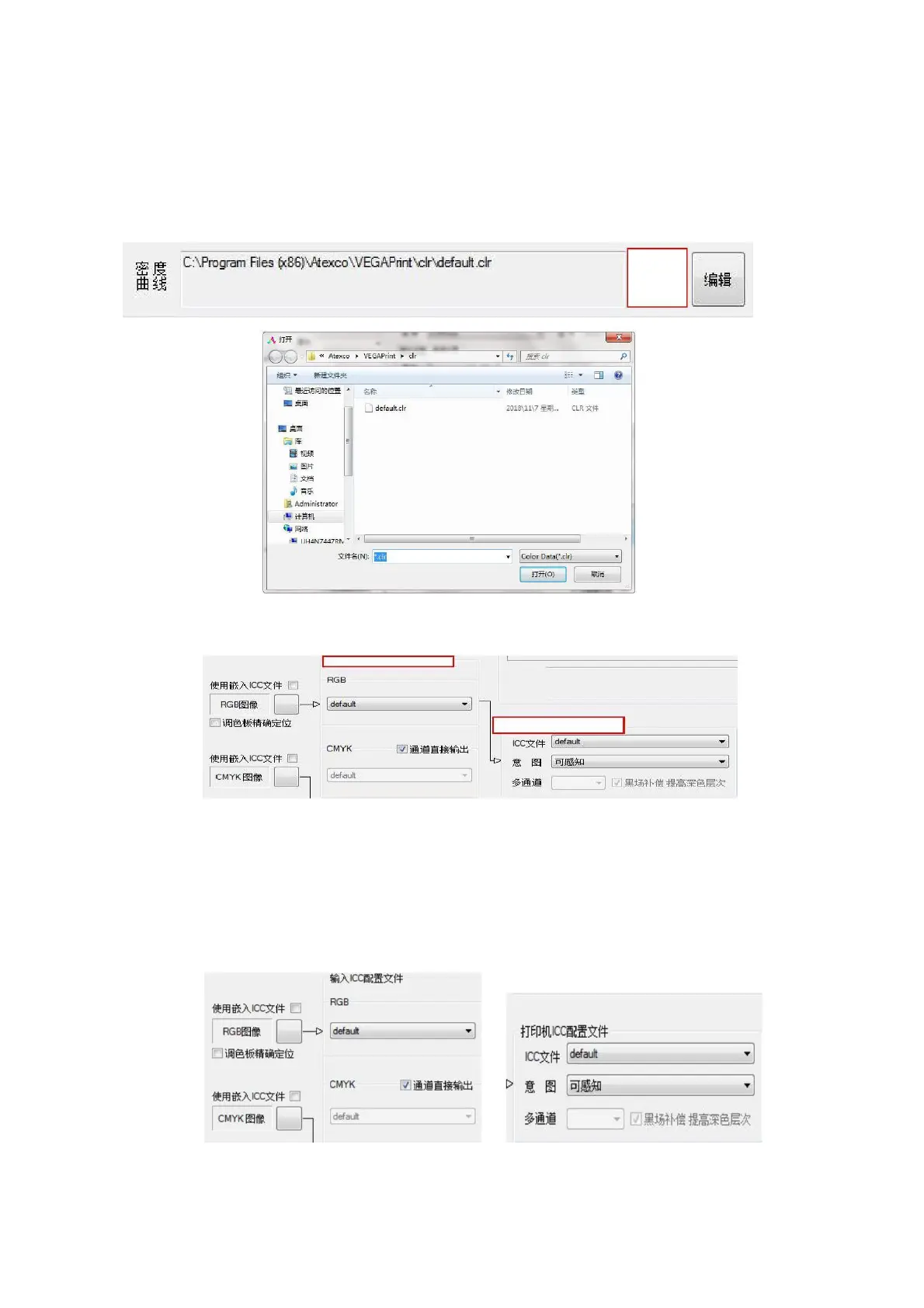

density curve will be retested.) Click “Browse”, the interface shown below appears.
Tip: Select the appropriate density curve according to different fabrics and pass numbers.
B：ICC Profile：The ICC curve settings are divided into input ICC settings and printer ICC settings.
图 4-15 颜色管理
①When there is no ICC curve, no need to check the embedded ICC file, enter RGB in the ICC configuration file
to select default.
CMYK selects default and the channel outputs directly; the printer ICC configuration file selects default, as
shown below:
Figure 4-16 ICC Selection
